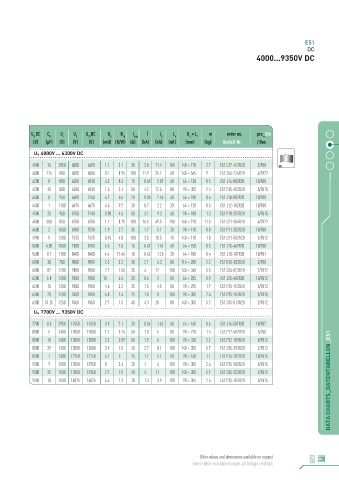

Page 7 - ELECTRONICON_E51-E53-E55

E51
DC
4000...9350V DC

U DC C U U U DC R R I Î I L D ×× L m order no. pcs_Stk
N N r S BB S th max S e 1 1
(V) (µF) (V) (V) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) (kg) Bestell-Nr. / Box
U N 4000V ... 6300V DC

4000 16 2850 6000 6600 1.1 3.1 30 3.8 11.4 100 140 × 170 2.7 E51.S17-163R20 2/FB8
4000 215 800 6000 6000 0.7 0.95 100 11.9 35.7 60 140 × 565 9 E51.S56-224R20 4/FB22
4200 8 800 6300 6930 4.3 8.3 15 0.69 2.07 60 64 × 138 0.5 E51.L14-802R20 10/FB0
4200 45 800 6300 6930 1.6 2.4 50 4.2 12.6 80 90 × 355 2.4 E51.P35-453R20 5/FB15
4400 8 950 6600 7260 4.2 6.5 20 0.85 2.55 60 64 × 180 0.6 E51.L18-802R20 10/FB8
4500 25 950 6750 7430 0.98 4.6 50 3.1 9.3 60 90 × 188 1.3 E51.P18-253R20 5/FB15
4500 300 850 6750 6750 1.1 0.75 100 16.5 49.5 200 140 × 710 11.5 E51.S71-304R20 4/FB22
4600 2 1500 6900 7590 1.9 2.7 35 1.7 5.1 20 90 × 110 0.8 E51.P11-202R20 10/FB8
5000 4.55 1000 7500 8250 6.5 7.8 15 0.47 1.41 60 64 × 150 0.5 E51.L15-462R20 10/FB0
5600 0.1 1100 8400 8400 6.4 11.64 10 0.42 1.26 20 64 × 100 0.4 E51.L10-101R20 10/FB1
5600 1 1100 8400 8400 4.6 9.7 20 0.7 2.2 20 64 × 120 0.5 E51.L12-102R20 10/FB0
6000 5 1200 9000 9900 0.45 4.8 100 3.5 10.5 15 140 × 110 1.8 E51.S11-502R20 4/FB12
6000 30 700 9000 9000 2.3 3.2 30 2.1 6.3 80 116 × 200 2.2 E51.R20-303R20 3/FB8
6000 82 1200 9000 9000 2.2 1.56 35 4 12 100 140 × 340 5.5 E51.S34-823R20 2/FB12
6200 6.8 1200 9300 9300 10 4.6 20 0.6 2 50 64 × 255 0.9 E51.L25-682R20 10/FB12
6200 15 1200 9300 9300 4.6 3.2 35 1.5 4.5 50 90 × 255 1.7 E51.P25-153R20 5/FB12
6300 20 1200 9450 9450 6.8 2.4 25 1.8 8 100 90 × 355 2.4 E51.P35-203R20 5/FB15
6300 51.25 1250 9450 9450 2.7 1.5 40 4.3 20 80 140 × 355 5.7 E51.S35-513R20 2/FB12
U N 8000V ... 9350V DC
8000 5 1400 12000 12000 1.7 3.76 50 1.8 5 80 90 × 220 1.5 E51.P22-502R20 5/FB8
8000 10 1400 12000 12000 2.3 2.59 50 1.9 6 100 90 × 320 2.2 E51.P32-103R20 5/FB12
DATA CHARTS_DATENTABELLEN_E51
8000 39 1400 12000 12000 3.9 1.5 40 2.7 8.1 100 140 × 355 5.7 E51.S35-393R20 2/FB12
8500 0.5 3950 12750 12750 3.9 7.1 20 0.54 1.62 60 64 × 165 0.6 E51.L16-501R20 10/FB7
8500 1 1400 12750 12750 4.1 5 25 1.7 5.1 50 90 × 160 1.1 E51.P16-102R20 10/FB15
9300 9 1500 13950 13950 8 2.4 20 1 4 100 90 × 355 2.4 E51.P35-902R20 5/FB15
9300 25 1500 13950 13950 2.7 1.5 40 4 11 100 140 × 355 5.7 E51.S35-253R20 2/FB12
9350 10 1500 14025 14025 6.6 2.3 10 1.3 3.9 100 90 × 355 2.4 E51.P35-103R20 5/FB15

Other values and dimensions available on request 7
Andere Werte und Abmessungen auf Anfrage erhältlich
