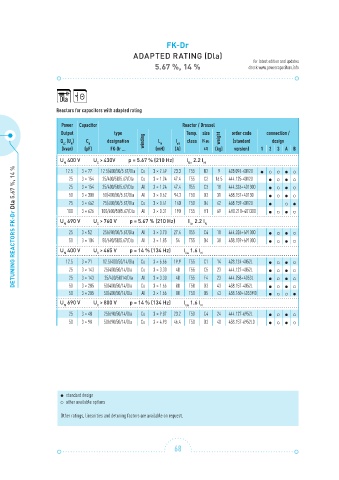

FK-Dr

ADAPTED RATING (Dla)
for latest edition and updates
5.67 %, 14 % check www.powercapacitors.info

Reactors for capacitors with adapted rating

Power Capacitor Reactor / Drossel
Output type Temp. size order code connection /
Q (U ) C N designation winding L N I eff class (S.pg. weight (standard design
N
LC
(kvar) (µF) FK-Dr ... (mH) (A) 62) (kg) version) 1 2 3 A B
U 400 V U > 430V p = 5.67 % (210 Hz) I 2.2 I
N
C
lin
N
DETUNING REACTORS FK-Dr Dla 5.67 %, 14 %
12.5 3 × 77 12.5/400/50/5.67/Dla Cu 3 × 2.49 23.3 T55 B2 9 428.094-40120
25 3 × 154 25/400/50/5.67/Dla Cu 3 × 1.24 47.4 T55 C2 16.5 444.125-40120
25 3 × 154 25/400/50/5.67/Dla Al 3 × 1.24 47.4 T55 C3 18 444.326+401300
50 3 × 308 50/400/50/5.67/Dla Al 3 × 0.62 94.2 T50 D3 31 458.157+40130
75 3 × 462 75/400/50/5.67/Dla Cu 3 × 0.41 140 T50 D4 42 468.159-40120
100 3 × 626 100/400/50/5.67/Dla Al 3 × 0.31 190 T55 H1 69 4H0.218+401300

U 690 V U > 760 V p = 5.67 % (210 Hz) I 2.2 I
C
N
N
lin
25 3 × 52 25/690/50/5.67/Dla Al 3 × 3.70 27.4 T55 C4 18 444.326+691300
50 3 × 104 50/690/50/5.67/Dla Al 3 × 1.85 54 T55 D4 38 458.159+691300
U 400 V U > 465 V p = 14 % (134 Hz) I 1.6 I
N C lin N
12.5 3 × 71 12.5/400/50/14/Dla Cu 3 × 6.66 19.9 T55 C1 14 428.124-4052L
25 3 × 143 25/400/50/14/Dla Cu 3 × 3.30 40 T55 C5 23 444.127-4052L
25 3 × 143 25/400/50/14/Dla Al 3 × 3.30 40 T55 F4 23 444.258+4053L
50 3 × 285 50/400/50/14/Dla Cu 3 × 1.66 80 T50 D3 43 458.157-4052L
50 3 × 285 50/400/50/14/Dla Al 3 × 1.66 80 T50 D5 43 458.160+4053M0
U 690 V U > 800 V p = 14 % (134 Hz) I 1.6 I
N
lin
C
N
25 3 × 48 25/690/50/14/Dla Cu 3 × 9.87 23.2 T50 C4 24 444.127-6952L
50 3 × 98 50/690/50/14/Dla Cu 3 × 4.93 46.4 T50 D3 40 458.157-6952L0

standard design
other available options

Other ratings, linearities and detuning factors are available on request.
