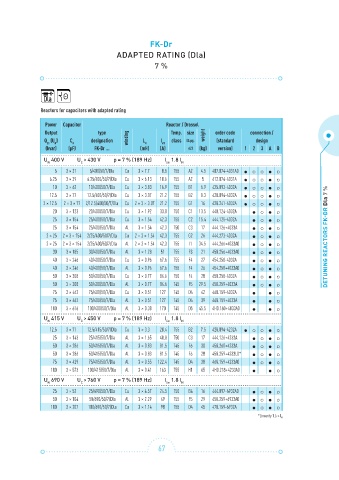

Page 67 - ELECTRONICON_Key-Components-50Hz

FK-Dr

ADAPTED RATING (Dla)
7 %

Reactors for capacitors with adapted rating

Power Capacitor Reactor / Drossel
Output type Temp. size weight order code connection /
Q (U ) C N designation winding L N I eff class (S.pg. (standard design
N
LC
(kvar) (µF) FK-Dr ... (mH) (A) 62) (kg) version) 1 2 3 A B
U 400 V U > 430 V p = 7 % (189 Hz) I 1.8 I
N C lin N
5 3 × 31 5/400/50/7/Dla Cu 3 × 7.7 8.5 T55 A2 4.5 407.074-4031A0
6.25 3 × 39 6.25/400/50/7/Dla Cu 3 × 6.13 10.6 T55 A2 5 412.074-4031A
10 3 × 62 10/400/50/7/Dla Cu 3 × 3.83 16.9 T55 B1 6.9 425.093-4032A
12.5 3 × 77 12.5/400/50/7/Dla Cu 3 × 3.07 21.2 T55 B2 8.3 428.094-4032A
2 × 12.5 2 × 3 × 77 2/12.5/400/50/7/Dla Cu 2 × 3 × 3.07 21.2 T55 G1 16 428.241-4032A
20 3 × 123 20/400/50/7/Dla Cu 3 × 1.92 33.8 T50 C1 13.5 440.124-4032A
25 3 × 154 25/400/50/7/Dla Cu 3 × 1.54 42.3 T55 C2 15.4 444.125-4032A
25 3 × 154 25/400/50/7/Dla Al 3 × 1.54 42.3 T50 C3 17 444.126+4033A
2 × 25 2 × 3 × 154 2/25/400/50/7/Dla Cu 2 × 3 × 1.54 42.3 T55 G2 26 444.273-4032A DETUNING REACTORS FK-DR Dla 7 %
2 × 25 2 × 3 × 154 2/25/400/50/7/Dla Al 2 × 3 × 1.54 42.3 T55 I1 34.5 444.266+4033A0
30 3 × 185 30/400/50/7/Dla Al 3 × 1.28 51 T55 F3 21 450.256+4033A0
40 3 × 246 40/400/50/7/Dla Cu 3 × 0.96 67.6 T55 F4 27 454.258-4032A
40 3 × 246 40/400/50/7/Dla Al 3 × 0.96 67.6 T55 F4 26 454.258+4033A0
50 3 × 308 50/400/50/7/Dla Cu 3 × 0.77 84.6 T50 F4 28 458.258-4032A
50 3 × 308 50/400/50/7/Dla Al 3 × 0.77 84.6 T45 F5 29.5 458.259+4033A
75 3 × 462 75/400/50/7/Dla Cu 3 × 0.51 127 T45 D4 42 468.159-4032A
75 3 × 462 75/400/50/7/Dla Al 3 × 0.51 127 T45 D4 39 468.159+4033A
100 3 × 616 100/400/50/7/Dla Al 3 × 0.38 170 T45 D5 45.5 4H0.160+4033A0
U 415 V U > 450 V p = 7 % (189 Hz) I 1.8 I
N C lin N
12.5 3 × 71 12.5/415/50/7/Dla Cu 3 × 3.3 20.4 T55 B2 7.5 428.094-4232A
25 3 × 143 25/415/50/7/Dla Al 3 × 1.65 40.8 T50 C3 17 444.126+4233A
50 3 × 286 50/415/50/7/Dla Al 3 × 0.83 81.5 T45 F6 30 458.260+4233A
50 3 × 286 50/415/50/7/Dla Al 3 × 0.83 81.5 T45 F6 28 458.259+4233L0*
75 3 × 429 75/415/50/7/Dla Al 3 × 0.55 122.4 T45 D4 38 468.159+4233A0
100 3 × 573 100/415/50/7/Dla Al 3 × 0.41 163 T55 H1 65 4H0.218+4233A0
U 690 V U > 760 V p = 7 % (189 Hz) I 1.8 I
N C lin N
25 3 × 52 25/690/50/7/Dla Cu 3 × 4.57 24.5 T50 B4 16 444.097-6932A0
50 3 × 104 50/690/50/7/Dla Al 3 × 2.29 49 T55 F5 29 458.259+6933A0
100 3 × 207 100/690/50/7/Dla Cu 3 × 1.14 98 T55 D4 45 478.159-6932A

*Linearity 1.6 × I N
