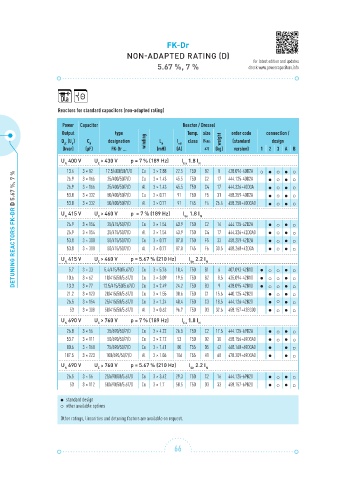

Page 66 - ELECTRONICON_Key-Components-50Hz

FK-Dr

NON-ADAPTED RATING (D)
for latest edition and updates
5.67 %, 7 % check www.powercapacitors.info

Reactors for standard capacitors (non-adapted rating)

Power Capacitor Reactor / Drossel
Output type Temp. size order code connection /
Q (U ) C N designation winding L N I eff class (S.pg. weight (standard design
N
LC
(kvar) (µF) FK-Dr ... (mH) (A) 62) (kg) version) 1 2 3 A B
U 400 V U > 430 V p = 7 % (189 Hz) I 1.8 I
N
C
N
lin
13.4 3 × 82 12.5/400/50/7/D Cu 3 × 2.88 22.5 T50 B2 8 428.094-40D2A
DETUNING REACTORS FK-DR D 5.67 %, 7 %
26.9 3 × 166 25/400/50/7/D Cu 3 × 1.43 45.5 T50 C2 17 444.125-40D2A
26.9 3 × 166 25/400/50/7/D Al 3 × 1.43 45.5 T50 C4 17 444.326+40D3A
53.8 3 × 332 50/400/50/7/D Cu 3 × 0.71 91 T50 F5 31 458.259-40D2A
53.8 3 × 332 50/400/50/7/D Al 3 × 0.71 91 T45 F4 26.4 458.258+40D3A0
U 415 V U > 460 V p = 7 % (189 Hz) I 1.8 I N
lin
N
C
26.9 3 × 154 25/415/50/7/D Cu 3 × 1.54 43.9 T50 C2 16 444.125-42D2A
26.9 3 × 154 25/415/50/7/D Al 3 × 1.54 43.9 T50 C4 17 444.326+42D3A0
53.8 3 × 308 50/415/50/7/D Cu 3 × 0.77 87.8 T50 F5 33 458.259-42D2A
53.8 3 × 308 50/415/50/7/D Al 3 × 0.77 87.8 T45 F6 30.5 458.260+42D3A
U 415 V U > 460 V p = 5.67 % (210 Hz) I 2.2 I
N C lin N
5.7 3 × 33 5.4/415/50/5.67/D Cu 3 × 5.76 10.4 T50 B1 6 407.093-42B10
10.6 3 × 62 10/415/50/5.67/D Cu 3 × 3.09 19.5 T50 B2 8.5 425.094-42B10
13.3 3 × 77 12.5/415/50/5.67/D Cu 3 × 2.49 24.2 T50 B3 9 428.095-42B10
21.2 3 × 123 20/415/50/5.67/D Cu 3 × 1.55 38.6 T50 C1 15.6 440.125-42B20
26.5 3 × 154 25/415/50/5.67/D Cu 3 × 1.24 48.4 T50 C3 18.5 444.126-42B20
53 3 × 308 50/415/50/5.67/D Al 3 × 0.62 96.7 T50 D3 32.6 458.157+42B300
U 690 V U > 760 V p = 7 % (189 Hz) I 1.8 I N
N
C
lin
26.8 3 × 56 25/690/50/7/D Cu 3 × 4.22 26.5 T50 C2 17.5 444.125-69D2A
53.7 3 × 111 50/690/50/7/D Cu 3 × 2.12 53 T50 D2 30 458.156+69D3A0
80.6 3 × 168 75/690/50/7/D Cu 3 × 1.41 80 T55 D5 42 468.160+69D3A0
107.5 3 × 223 100/690/50/7/D Al 3 × 1.06 106 T55 H1 68 478.209+69D3A0
U 690 V U > 760 V p = 5.67 % (210 Hz) I 2.2 I N
lin
N
C
26.5 3 × 56 25/690/50/5.67/D Cu 3 × 3.42 29.3 T50 C2 16 444.125-69B20
53 3 × 112 50/690/50/5.67/D Cu 3 × 1.7 58.5 T50 D3 33 458.157-69B20

standard design
other available options

Other ratings, linearities and detuning factors are available on request.
