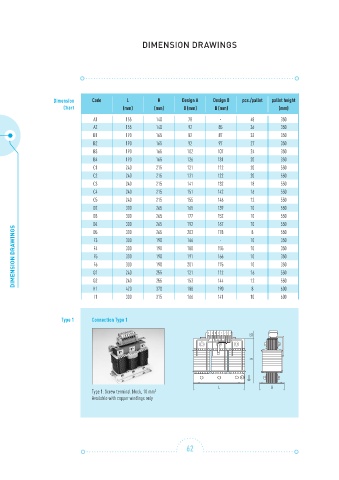

DIMENSION DRAWINGS

Dimension Code L H Design A Design B pcs./pallet pallet height
Chart (mm) (mm) B (mm) B (mm) (mm)
A1 155 140 78 - 48 350
A2 155 140 92 85 36 350
B1 190 165 82 87 33 350
B2 190 165 92 97 27 350
B3 190 165 102 107 24 350
B4 190 165 126 131 20 350
C1 240 215 121 112 20 550
C2 240 215 131 122 20 550
C3 240 215 141 132 18 550
C4 240 215 151 142 16 550
C5 240 215 155 146 12 550
D2 300 265 165 139 10 550
D3 300 265 177 152 10 550
D4 300 265 192 167 10 550
DIMENSION DRAWINGS F3 300 190 166 155 10 350
265
300
203
8
550
178
D5
-
190
F4
180
10
350
300
166
190
10
350
191
F5
300
300
201
175
350
190
F6
10
550
16
112
255
240
G1
121
G2
8
420
600
H1 240 255 153 144 12 550
190
370
188
I1 300 315 166 141 10 600
Type 1 Connection Type 1
U V W X Y Z T T
55
H
L B
Type 1: Screw terminal block, 10 mm 2
Available with copper windings only
