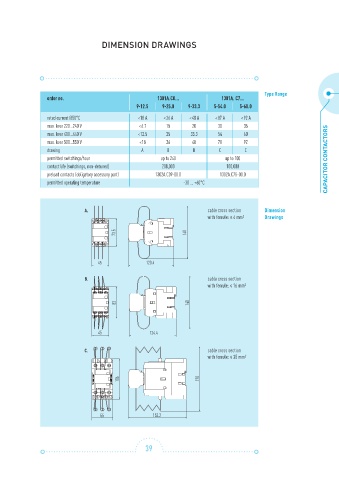

DIMENSION DRAWINGS

Type Range
order no. 1301A.C0... 1301A. C7...
9-12.5 9-25.0 9-33.3 5-54.0 5-60.0

rated current @50°C <18 A <36 A <48 A <87 A <92 A
max. kvar 220…240 V <6.7 15 20 30 35
max. kvar 400…440 V <12.5 25 33.3 54 60
max. kvar 500…550 V <18 36 48 78 92
drawing A B B C C
permitted switchings/hour up to 240 up to 100 CAPACITOR CONTACTORS
contact life (switchings, non-detuned) 200,000 100,000
preload contacts (obligatory accessory part) 1302A.C09-00.0 1302A.C75-00.0
permitted operating temperature -30 … +60°C

A. cable cross section Dimension
with ferrule: ≤ 4 mm² Drawings

73 5 . 140

.
45 120 4
B. cable cross section
with ferrule: ≤ 16 mm²

83 140

45 124 4
.

C. cable cross section
with ferrule: ≤ 35 mm²

106 170

.
55 153 2
