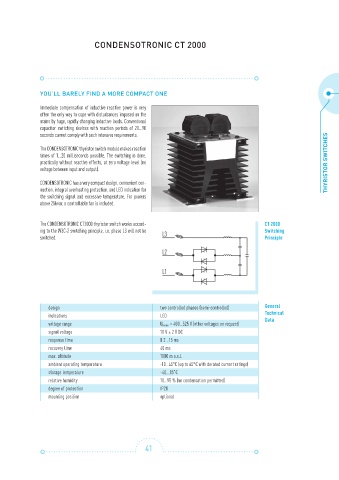

CONDENSOTRONIC CT 2000

YOU’LL BARELY FIND A MORE COMPACT ONE

Immediate compensation of inductive reactive power is very
often the only way to cope with disturbances imposed on the
mains by huge, rapidly changing inductive loads. Conventional
capacitor switching devices with reaction periods of 20...90
seconds cannot comply with such intensive requirements.

The CONDENSOTRONIC thyristor switch module makes reaction
times of 1...20 milliseconds possible. The switching is done,
practically without reactive effects, at zero voltage level (no THYRISTOR SWITCHES
voltage between input and output).

CONDENSOTRONIC has a very compact design, convenient con-
nection, integral overheating protection, and LED indication for
the switching signal and excessive temperature. For powers
above 25kvar, a controllable fan is included.

The CONDENSOTRONIC CT2000 thyristor switch works accord- CT 2000
ing to the W3C-2 switching principle, i.e. phase L3 will not be Switching
switched. Principle

design two controlled phases (semi-controlled) General
indications LED Technical
Data
voltage range U mains = 400…525 V (other voltages on request)
signal voltage 10 V ± 2 V DC
response time 0.2...15 ms
recovery time 40 ms
max. altitude 1000 m a.s.l.
ambient operating temperature -10…45°C (up to 65°C with derated current ratings)
storage temperature -40...85˚C
relative humidity 10…95 % (no condensation permitted)
degree of protection IP20
mounting position optional

41
