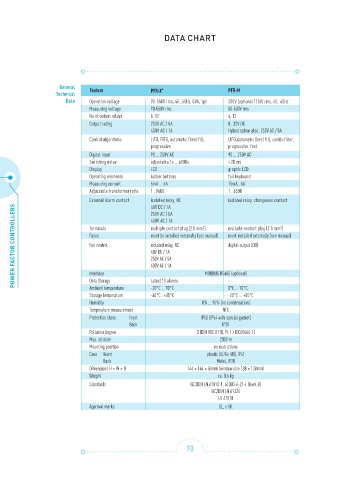

DATA CHART

General +
Technical Feature PFR-X PFR-M
Data Operation voltage 90-550V rms, 45…65Hz, 5VA, 1ph 230V (optional 115V) rms, 45…65Hz
Measuring voltage 90-550V rms 50-530V rms
No of output relays 6, 12 6, 12
Output rating 250V AC / 5A 8…32V DC
400V AC / 1A Hybrid option also: 250V AC / 5A
Control algorithms LIFO, FIFO, automatic (best fit), LIFO,automatic (best fit), combi-filter,
progressive progressive, fast
Digital input 90 … 250V AC 90 … 250V AC
Switching delay adjustable 1s … 6500s ≤ 20 ms
Display LCD graphic LCD
Operating elements rubber buttons foil keyboard
Measuring current 5mA … 6A 15mA…6A
Adjustable transformer ratio 1...9600 1...6500
External Alarm contact isolated relay, NC isolated relay, changeover contact
POWER FACTOR CONTROLLERS Terminals multiple contact plug (2.5 mm²) multiple contact plug (2.5 mm²)
48V DC / 1A
250V AC / 5A
400V AC / 1A

Fuses
must be installed externally (see manual)
must installed externally (see manual)
digital output (DO)
Fan control
isolated relay, NC
48V DC / 1A
250V AC / 5A
400V AC / 1A
Interface
Data Storage
-
Ambient temperature
0°C … 70°C
-20°C … 70°C
-40°C...+85°C
-20°C … +85°C
Storage temperature Latest 10 alarms MODBUS RS485 (optional)
Humidity 0% … 95% (no condensation)
Temperature measurement NTC
Protection class Front IP50 (IP54 with special gasket)
Back IP20
Pollution degree 3 (DIN VDE 0110, Pt 1 / IEC60664-1)
Max. altitude 2000 m
Mounting position no restrictions
Case Front plastic (UL94: V0), IP41
Back Metal, IP20
Dimensions H × W × D 144 × 144 × 58mm (window size 138 × 138mm)
Weight ca. 0.6 kg
Standards IEC/DIN EN 61010-1, 61000-6-2/-4 (level B)
IEC/DIN EN 61326
UL 61010
Approval marks UL, c-UL
