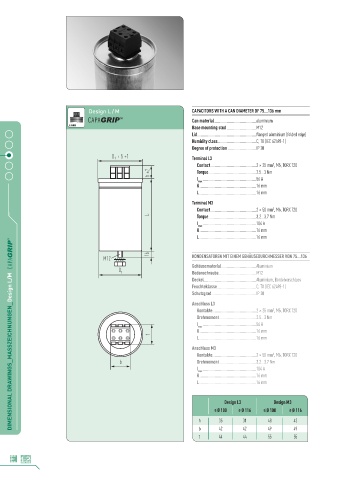

Design L / M CAPACITORS WITH A CAN DIAMETER OF 75...136 mm
Can material .........................................aluminium
Base mounting stud .............................M12
Lid..........................................................flanged aluminium (folded edge)
Humidity class......................................C, TX (IEC 62498-1)
Degree of protection ............................IP 20
D + 5 ±1 Terminal L3
Contact .............................................2 × 25 mm , M5, TORX T20
2
h ±2 Torque ...............................................2.5...3 Nm
I ....................................................56 A
max
K .......................................................16 mm
L ........................................................16 mm
Terminal M3
Contact .............................................2 × 50 mm , M6, TORX T20
2
Torque ...............................................3.2...3.7 Nm
I ....................................................104 A
max
K .......................................................16 mm
L ........................................................16 mm
KONDENSATOREN MIT EINEM GEHÄUSEDURCHMESSER VON 75...136
Gehäusematerial ..................................Aluminium
Bodenschraube.....................................M12
DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_Design L/M
Deckel ...................................................Aluminium, Bördelverschluss
Feuchteklasse ......................................C, TX (IEC 62498-1)
Schutzgrad ............................................IP 20
Anschluss L3
Kontakte ...........................................2 × 25 mm , M5, TORX T20
2
Drehmoment ....................................2.5...3 Nm
I ....................................................56 A
max
K .......................................................16 mm
L ........................................................16 mm
Anschluss M3
Kontakte ...........................................2 × 50 mm , M6, TORX T20
2
Drehmoment ....................................3.2...3.7 Nm
I ....................................................104 A
max
K .......................................................16 mm
L ........................................................16 mm
Design L3 Design M3
≤ Ø 100 ≥ Ø 116 ≤ Ø 100 ≥ Ø 116
h 35 31 48 43
b 42 42 49 49
t 44 44 55 55
