Design S / Z CAPACITORS WITH A CAN DIAMETER OF 60...116 mm
Can material .........................................aluminium
Base mounting stud .............................M12
Lid flanged ............................................aluminium (folded edge)
D + 5 ±1 Humidity class......................................C, TX (IEC 62498-1)
D + 5 ±1 Degree of protection ............................IP 00
h ±2 Terminal Z3
h ±2 Contact .............................................2 × 10 mm , M4 TORX T20
2
Torque ...............................................2...2.7 Nm
I ....................................................39 A
max
K .......................................................10 mm
L ........................................................10 mm
Terminal S4 ...........................................
Contact .............................................2 × 16 mm , M5 TORX T20
2
Torque ...............................................3.7 ... 4 Nm
I ....................................................56 A
max
K .......................................................11 mm
L ........................................................11 mm
KONDENSATOREN MIT EINEM GEHÄUSEDURCHMESSER VON 60...116 mm
Gehäusematerial ..................................Aluminium
Bodenschraube.....................................M12

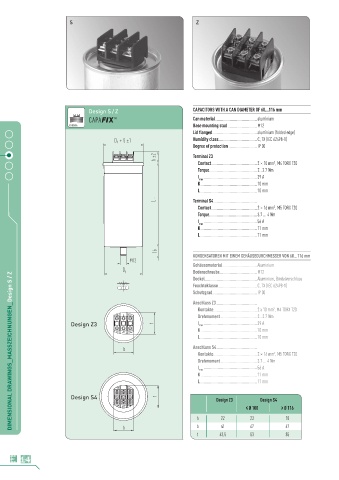

DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_Design S / Z
Deckel ...................................................Aluminium, Bördelverschluss
Feuchteklasse ......................................C, TX (IEC 62498-1)
Schutzgrad ............................................IP 00
Anschluss Z3 ........................................
Kontakte ...........................................2 x 10 mm , M4 TORX T20
2
Drehmoment ....................................2...2.7 Nm
Design Z3 I ....................................................39 A
max
K .......................................................10 mm
L ........................................................10 mm
Anschluss S4 ........................................
Kontakte ...........................................2 × 16 mm , M5 TORX T20
2
Drehmoment ....................................3.7 ... 4 Nm
I ....................................................56 A
max
K .......................................................11 mm
L ........................................................11 mm
56A
Design S4 2,7Nm Design Z3 Design S4
≤ Ø 100 ≥ Ø 116
56A 2,7Nm
h 22 23 18
b 41 47 47
t 43.5 53 35
