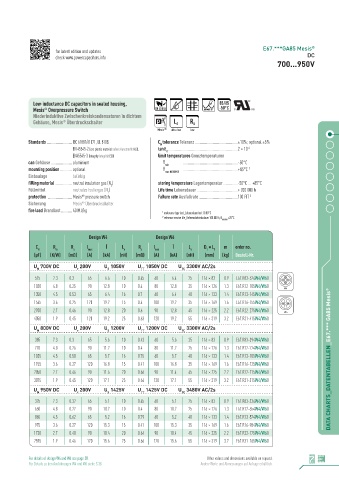

Page 7 - ELECTRONICON_DC-Kondensatoren
P. 7
E67.***GA85 Mesis
®
for latest edition and updates
check www.powercapacitors.info DC
700...950V
Low-inductance DC capacitors in sealed housing, CQC
Mesis Overpressure Switch
®
Niederinduktive Zwischenkreiskondensatoren in dichtem
Gehäuse, Mesis Überdruckschalter
®
Mesis ® ultra low low
Standards .........................IEC 61881/61071, UL 810B, C tolerance Toleranz ..........................................±10%; optional ±5%
N
................................................ EN 45545-2 (ext. plastic material äußere Kunststoffe HL3), tanδ ....................................................................2 × 10 -4
0
................................................ EN45545-3 (integrity Integrität E30) limit temperatures Grenztemperaturen
can Gehäuse .....................aluminium Ѳ ......................................................- 50°C
min
mounting position ............optional Ѳ max HOTSPOT ......................................................+85°C 1
Einbaulage .....................beliebig
filling material .................neutral insulation gas (N ) 2 storing temperature Lagertemperatur ..............-50°C ... +85°C
Füllmittel ......................neutrales Isoliergas (N ) 2 Life time Lebensdauer ........................................> 200 000 h
protection ........................Mesis pressure switch Failure rate Ausfallrate ......................................100 FIT 2
®
Sicherung ......................Mesis Überdruckschalter
®
fire load Brandlast ...........40 MJ/kg 1 endurance type test_Lebensdauertest: @ 80°C
2 reference service life_Referenzbetriebsdauer 100.000 h, Ѳ HOTSPOT ≤70°C
Design W4 Design W6
C N R th R s I max Î L e R s I max Î L e D × L 1 m order no.
1
(µF) (K/W) (m¬) (A) (kA) (nH) (m¬) (A) (kA) (nH) (mm) (kg) Bestell-Nr.
U 700V DC U 200V U 1050V U 1050V DC U 3300V AC/2s
N
r
BB
S
BG
515 7.3 0.3 65 6.4 10 0.45 60 6.4 25 116 × 83 0.9 E67.R83-524W4/W60
1030 4.8 0.25 90 12.8 10 0.4 80 12.8 25 116 × 126 1.3 E67.R12-105W4/W60 W 4
1350 4.5 0.53 65 6.4 16 0.7 60 6.4 40 116 × 133 1.4 E67.R13-145W4/W60
1545 3.6 0.25 120 19.2 15 0.4 100 19.2 35 116 × 169 1.6 E67.R16-155W4/W60
2700 2.7 0.46 90 12.8 20 0.6 90 12.8 45 116 × 225 2.2 E67.R22-275W4/W60 W 6
4050 1.9 0.45 120 19.2 25 0.63 120 19.2 55 116 × 319 3.2 E67.R31-415W4/W60
U 800V DC U 200V U 1200V U 1200V DC U 3300V AC/2s
S
N
BB
BG
r
385 7.3 0.3 65 5.6 10 0.43 60 5.6 25 116 × 83 0.9 E67.R83-394W4/W60
770 4.8 0.26 90 11.2 10 0.4 80 11.2 25 116 × 126 1.3 E67.R12-774W4/W60
1025 4.5 0.58 65 5.7 16 0.75 60 5.7 40 116 × 133 1.4 E67.R13-105W4/W60 DATA CHARTS_DATENTABELLEN_E67.*** GA85 Mesis ®
1155 3.6 0.27 120 16.8 15 0.41 100 16.8 35 116 × 169 1.6 E67.R16-125W4/W60
2050 2.7 0.46 90 11.4 20 0.66 90 11.4 45 116 × 225 2.2 E67.R22-215W4/W60
3075 1.9 0.45 120 17.1 25 0.64 120 17.1 55 116 × 319 3.2 E67.R31-315W4/W60
U 950V DC U 200V U 1425V U 1425V DC U 3480V AC/2s
BB
N
r
S
BG
325 7.3 0.32 65 5.1 10 0.45 60 5.1 25 116 × 83 0.9 E67.R83-334W4/W60
650 4.8 0.27 90 10.2 10 0.4 80 10.2 25 116 × 126 1.3 E67.R12-654W4/W60
865 4.5 0.62 65 5.2 16 0.79 60 5.2 40 116 × 133 1.4 E67.R13-874W4/W60
975 3.6 0.27 120 15.3 15 0.41 100 15.3 35 116 × 169 1.6 E67.R16-984W4/W60
1730 2.7 0.48 90 10.4 20 0.64 90 10.4 45 116 × 225 2.2 E67.R22-175W4/W60
2595 1.9 0.46 120 15.6 25 0.66 120 15.6 55 116 × 319 3.2 E67.R31-265W4/W60
For details of design W4 and W6 see page 38. Other values and dimensions available on request. 7
Für Details zu den Ausführungen W4 und W6 siehe S.38. Andere Werte und Abmessungen auf Anfrage erhältlich.
