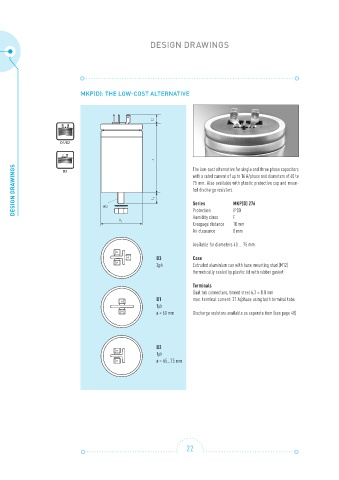

DESIGN DRAWINGS
MKP(D): THE LOW-COST ALTERNATIVE
2
1
D1/D2
L 1 The low-cost alternative for single and three phase capacitors
DESIGN DRAWINGS L S 75 mm. Also available with plastic protective cap and moun-
D3
with a rated current of up to 16 A/phase and diameters of 40 to
ted discharge resistors.
Series
MKP(D) 276
M12
F
Humidity class
D 1 Protection IP00
Creepage distance 10 mm
Air clearance 8 mm
Available for diameters 40 ... 75 mm.
D3 Case
3ph Extruded aluminium can with base mounting stud (M12)
Hermetically sealed by plastic lid with rubber gasket
Terminals
Dual tab connectors, tinned steel 6.3 × 0.8 mm
D1 max. terminal current: 21 A/phase using both terminal tabs
1ph
ø < 60 mm Discharge resistors available as separate item (see page 48)
D2
1ph
ø = 65...75 mm
