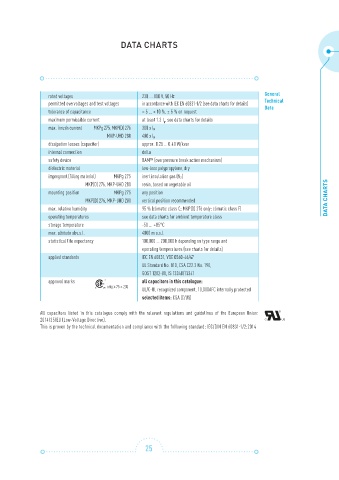

DATA CHARTS

rated voltages 230 ... 800 V, 50 Hz General
permitted overvoltages and test voltages in accordance with IEC EN 60831-1/2 (see data charts for details) Technical
Data
tolerance of capacitance – 5 ... + 10 %, ± 5 % on request
maximum permissible current at least 1.3 I , see data charts for details
N
max. inrush current MKPg 275, MKP(D) 276 300 x I N
MKP-UHD 280 400 x I N
dissipation losses (capacitor) approx. 0.25 … 0.40 W/kvar
internal connection delta
safety device BAM™ (overpressure break action mechanism)
dielectric material low-loss polypropylene, dry
impregnant (filling material) MKPg 275 inert insulation gas (N 2)
MKP(D) 276, MKP-UHD 280 resin, based on vegetable oil
mounting position MKPg 275 any position
MKP(D) 276, MKP-UHD 280 vertical position recommended DATA CHARTS
max. relative humidity 95 % (climatic class C; MKP(D) 276 only: climatic class F)
operating temperatures see data charts for ambient temperature class
storage temperature -50 ... +85°C
max. altitude abv.s.l. 4000 m a.s.l.
statistical life expectancy 100,000 … 200,000 h depending on type range and
operating temperatures (see charts for details)
applied standards IEC EN 60831, VDE 0560-46/47
UL Standard No. 810, CSA C22.2 No. 190,
GOST 1282-88, IS 13340/13341
approval marks all capacitors in this catalogue:
only ≥ 75 × 230
UL/C-UL recognized component, 10,000AFC internally protected
selected items: CSA (C/US)

All capacitors listed in this catalogue comply with the relevant regulations and guidelines of the European Union:
2014/35/EU (Low-Voltage Directive).
This is proven by the technical documentation and compliance with the following standard: IEC/DIN EN 60831-1/2:2014

25
