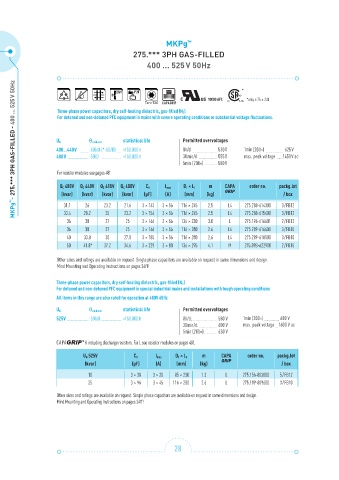

Page 28 - ELECTRONICON_Key-Components-50Hz

MKPg
™
275.*** 3PH GAS-FILLED

400 ... 525 V 50Hz

MKPg ™ - 275.*** 3PH GAS-FILLED - 400 … 525 V 50Hz

10000 AFC *only ≥ 75 × 230
To r x T 2 0 CAPAGRIP
Torx T20
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in mains with severe operating conditions or substantial voltage fluctuations.

Θ ambient statistical life Permitted overvoltages
U N
400…440 V -50/60 (*-50/D) >150,000 h 8h/d 530 V 1min (200×) 625 V
480 V -50/D >150,000 h 30min/d 555 V max. peak voltage 1450 V ac
5min (200×) 580 V
For resistor modules see pages 48f.

Q C 480V Q C 440V Q C 415V Q C 400V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
31.1 26 23.2 21.6 3 × 143 3 × 56 116 × 245 2.5 L4 275.288-614300 3 / FB12
33.4 28.2 25 23.2 3 × 154 3 × 56 116 × 245 2.5 L4 275.288-615400 3 / FB12
36 30 27 25 3 × 166 3 × 56 136 × 230 3.0 L 275.196-616601 2 / FB12
36 30 27 25 3 × 166 3 × 56 116 × 280 2.6 L4 275.289-616600 3 / FB10
40 33.8 30 27.8 3 × 185 3 × 56 116 × 280 2.6 L4 275.289-618500 3 / FB10
50 41.8* 37.2 34.6 3 × 229 3 × 80 136 × 295 4.1 M 275.39B-622900 2 / FB15

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 34ff!

Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in special industrial mains and installations with tough operating conditions
All items in this range are also rated for operation at 480V 60Hz

Θ ambient statistical life Permitted overvoltages
U N
525V -50/60 >150,000 h 8h/d: 580 V 1min (200×) 680 V
30min/d: 600 V max. peak voltage 1600 V ac
5min (200×): 630 V
K including discharge resistors. For L see resistor modules on pages 48f.

U N 525V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (µF) (A) (mm) (kg) GRIP / box
10 3 × 38 3 × 20 85 × 230 1.3 L 275.156-803800 5 / FB12
25 3 × 96 3 × 45 116 × 280 2.6 L 275.189-809600 3 / FB10

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 34ff!

28
