P. 33

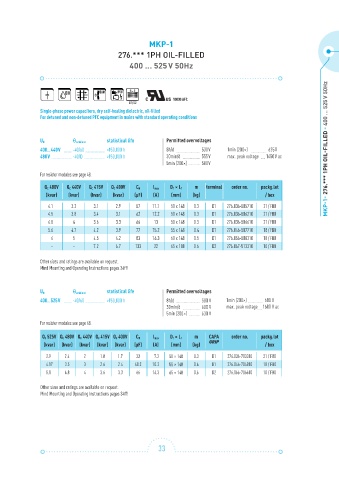

MKP-1
276.*** 1PH OIL-FILLED
400 ... 525 V 50Hz
10000 AFC
D1/D2
Single-phase power capacitors, dry self-healing dielectric, oil-filled
For detuned and non-detuned PFC equipment in mains with standard operating conditions
Θ ambient statistical life Permitted overvoltages
U N
400…440 V -40/60 >150,000 h 8h/d 530 V 1min (200×) 625 V MKP-1- 276.*** 1PH OIL-FILLED - 400 … 525 V 50Hz
480 V -40/D >150,000 h 30min/d 555 V max. peak voltage 1450 V ac
5min (200×) 580 V
For resistor modules see page 48.
Q C 480V Q C 440V Q C 415V Q C 400V C N I max D 1 × L 1 m terminal order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) / box
4.1 3.3 3.1 2.9 57 11.1 50 x 148 0.3 D1 276.036-505710 21 / FB0
4.5 3.8 3.4 3.1 62 12.2 50 x 148 0.3 D1 276.036-506210 21 / FB0
4.8 4 3.6 3.3 66 13 50 x 148 0.3 D1 276.036-506610 21 / FB0
5.6 4.7 4.2 3.9 77 15.2 55 x 148 0.4 D1 276.046-507710 18 / FB0
6 5 4.5 4.2 83 16.3 60 x 148 0.5 D1 276.056-508310 18 / FB0
– – 7.2 6.7 133 22 65 x 188 0.6 D2 276.067-513310 10 / FB8
Other sizes and ratings are available on request.
Mind Mounting and Operating Instructions pages 34ff!
Θ ambient statistical life Permitted overvoltages
U N
400…525 V -40/60 >150,000 h 8h/d 580 V 1min (200×) 680 V
30min/d 600 V max. peak voltage 1600 V ac
5min (200×) 630 V
For resistor modules see page 48.
Q C 525V Q C 480V Q C 440V Q C 415V Q C 400V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
2.9 2.4 2 1.8 1.7 33 7.2 50 × 148 0.3 D1 276.036-703310 21 / FB0
4.17 3.5 3 2.6 2.4 48.2 10.3 55 × 148 0.4 D1 276.046-704810 18 / FB0
5.8 4.8 4 3.6 3.3 66 14.3 65 × 148 0.6 D2 276.066-706610 10 / FB0
Other sizes and ratings are available on request.
Mind Mounting and Operating Instructions pages 34ff!
33
