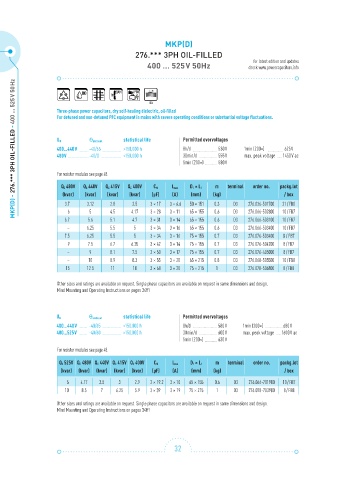

Page 32 - ELECTRONICON_Key-Components-50Hz

MKP(D)

276.*** 3PH OIL-FILLED
for latest edition and updates
400 ... 525 V 50Hz check www.powercapacitors.info

MKP(D) - 276.*** 3PH OIL-FILLED - 400 … 525 V 50 Hz

D3
Three-phase power capacitors, dry self-healing dielectric, oil-filled
For detuned and non-detuned PFC equipment in mains with severe operating conditions or substantial voltage fluctuations.

Θ ambient statistical life Permitted overvoltages
U N
400…440 V -40/65 >150,000 h 8h/d 530 V 1min (200×) 625 V
480 V -40/D >150,000 h 30min/d 555 V max. peak voltage 1450 V ac
5min (200×) 580 V
For resistor modules see page 48.

Q C 480V Q C 440V Q C 415V Q C 400V C N I max D 1 × L 1 m terminal order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) / box
3.7 3.12 2.8 2.5 3 × 17 3 × 6.6 50 × 151 0.3 D3 276.036-501700 21 / FB0
6 5 4.5 4.17 3 × 28 3 × 11 65 × 155 0.6 D3 276.066-502800 10 / FB7
6.7 5.6 5.1 4.7 3 × 31 3 × 14 65 × 155 0.6 D3 276.066-503100 10 / FB7
– 6.25 5.5 5 3 × 34 3 × 16 65 × 155 0.6 D3 276.066-503400 10 / FB7
7.5 6.25 5.5 5 3 × 34 3 × 16 75 × 155 0.7 D3 276.076-503400 8 / FB7
9 7.5 6.7 6.25 3 × 42 3 × 14 75 × 155 0.7 D3 276.076-504200 8 / FB7
– 9 8.1 7.5 3 × 50 3 × 17 75 × 155 0.7 D3 276.076-405000 8 / FB7
– 10 8.9 8.3 3 × 55 3 × 20 65 × 215 0.8 D3 276.068-505500 10 / FB8
15 12.5 11 10 3 × 68 3 × 20 75 × 215 1 D3 276.078-506800 8 / FB8

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 34ff!

Θ ambient statistical life Permitted overvoltages
U N
400…440 V -40/65 >150,000 h 8h/d 580 V 1min (200×) 680 V
480…525 V -40/60 >150,000 h 30min/d 600 V max. peak voltage 1600 V ac
5min (200×) 630 V
For resistor modules see page 48.
Q C 525V Q C 480V Q C 440V Q C 415V Q C 400V C N I max D 1 × L 1 m terminal order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) / box

5 4.17 3.5 3 2.9 3 × 19.2 3 × 10 65 × 155 0.6 D3 276.066-701900 10 / FB7
10 8.5 7 6.25 5.9 3 × 39 3 × 19 75 × 215 1 D3 276.078-703900 8 / FB8

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 34ff!

32
