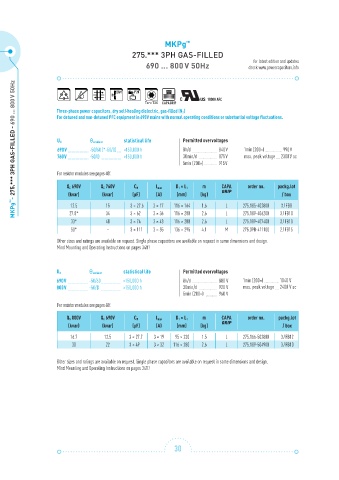

MKPg
™
275.*** 3PH GAS-FILLED
for latest edition and updates
690 ... 800 V 50Hz check www.powercapacitors.info

MKPg ™ - 275.*** 3PH GAS-FILLED - 690 … 800 V 50Hz

10000 AFC
Torx T20 CAPAGRIP
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in 690V mains with normal operating conditions or substantial voltage fluctuations.

Θ ambient statistical life Permitted overvoltages
U N
690 V -50/60 (*-50/D) >150,000 h 8h/d 840 V 1min (200×) 990 V
760 V -50/D >150,000 h 30min/d 875 V max. peak voltage 2300 V ac
5min (200×) 915 V
For resistor modules see pages 48f.

Q C 690V Q C 760V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
12.5 15 3 × 27.6 3 × 17 116 × 164 1.6 L 275.185-402800 3 / FB8
27.8* 34 3 × 62 3 × 36 116 × 280 2.6 L 275.189-406200 3 / FB10
33* 40 3 × 74 3 × 43 116 × 280 2.6 L 275.189-407400 3 / FB10
50* – 3 × 111 3 × 55 136 × 295 4.1 M 275.39B-411100 2 / FB15

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 34ff!

Θ ambient statistical life Permitted overvoltages
U N
690 V -50/60 >150,000 h 8h/d 880 V 1min (200×) 1040 V
800 V -50/D >150,000 h 30min/d 920 V max. peak voltage 2400 V ac
5min (200×) 960 V
For resistor modules see pages 48f.

Q N 800V Q C 690V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box

16.7 12.5 3 × 27.7 3 × 19 95 × 230 1.5 L 275.166-502800 3 / FB12
30 22 3 × 49 3 × 32 116 × 280 2.6 L 275.189-504900 3 / FB10

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 34ff!
