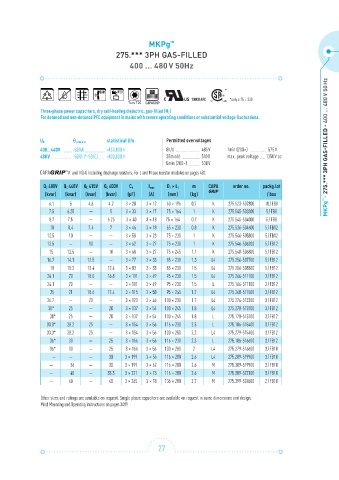

MKPg
™
275.*** 3PH GAS-FILLED
400 ... 480 V 50Hz

10000 AFC *only ≥ 75 × 230
Torx T20 CAPAGRIP
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in mains with severe operating conditions or substantial voltage fluctuations.

Θ ambient statistical life Permitted overvoltages
U N
400…440V -50/60 >150,000 h 8h/d 485 V 1min (200×) 575 V MKPg ™ - 275.*** 3PH GAS-FILLED - 400 … 480 V 50 Hz
480 V -50/D (*-50/C) >100,000 h 30min/d 510 V max. peak voltage 1350 V ac
5min (200×) 530 V
K and II (L4) including discharge resistors. For L and M see resistor modules on pages 48f.

Q C 480V Q C 440V Q C 415V Q C 400V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
6.1 5 4.6 4.2 3 × 28 3 × 12 60 × 196 0.7 K 275.523-502800 10 / FB8
7.5 6.25 — 5 3 × 33 3 × 17 75 × 164 1 K 275.545-503300 5 / FB8
8.7 7.5 — 6.25 3 × 40 3 × 18 75 × 164 0.7 K 275.545-504000 5 / FB8
10 8.4 7.4 7 3 × 46 3 × 18 65 × 230 0.8 K 275.536-504600 5 / FB12
12.5 10 — — 3 × 58 3 × 23 75 × 230 1 K 275.546-505800 5 / FB12
13.5 — 10 — 3 × 62 3 × 27 75 × 230 1 K 275.546-506200 5 / FB12
15 12.5 — 10 3 × 68 3 × 27 75 × 245 1.1 K 275.548-506800 5 / FB12
16.7 14.1 12.5 — 3 × 77 3 × 33 85 × 230 1.3 L4 275.256-507700 5 / FB12
18 15.2 13.4 12.4 3 × 83 3 × 33 85 × 230 1.5 L4 275.256-508300 5 / FB12
24.1 20 18.0 16.8 3 × 111 3 × 49 95 × 230 1.5 L4 275.266-511100 3 / FB12
24.1 20 — — 3 × 111 3 × 49 95 × 230 1.5 L 275.166-511100 3 / FB12
25 21 18.6 17.4 3 × 115 3 × 50 95 × 245 1.7 L4 275.268-511500 3 / FB12
26.7 — 20 — 3 × 123 3 × 46 100 × 230 1.7 L4 275.276-512300 3 / FB12
30* 25 — 20 3 × 137 3 × 54 100 × 245 1.8 L4 275.278-513700 3 / FB12
30* 25 — 20 3 × 137 3 × 54 100 × 245 1.8 L 275.178-513700 3 / FB12
33.3* 28.2 25 — 3 × 154 3 × 56 116 × 230 2.3 L 275.186-515400 3 / FB12
33.3* 28.2 25 — 3 × 154 3 × 56 100 × 280 2.2 L4 275.279-515400 3 / FB12
36* 30 — 25 3 × 166 3 × 56 116 × 230 2.3 L 275.186-516600 3 / FB12
36* 30 — 25 3 × 166 3 × 56 100 × 280 2 L4 275.279-516600 3 / FB10
— — — 30 3 × 199 3 × 56 116 × 280 2.6 L4 275.289-519900 3 / FB10
— 36 — 30 3 × 199 3 × 62 116 × 280 2.6 M 275.389-519900 3 / FB10
— 40 — 33.3 3 × 221 3 × 75 116 × 280 2.6 M 275.389-522100 3 / FB10
— 48 — 40 3 × 265 3 × 78 136 × 280 3.7 M 275.399-526500 2 / FB10

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 34ff!
