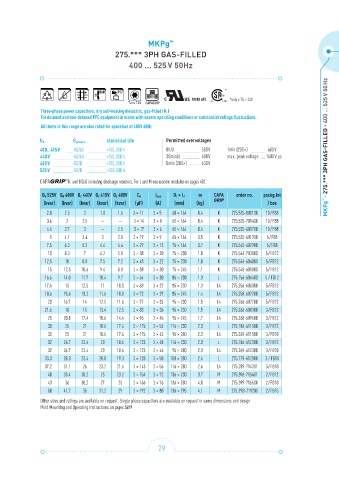

MKPg ™
275.*** 3PH GAS-FILLED

400 ... 525 V 50Hz

10000 AFC *only ≥ 75 × 230
Torx T20 CAPAGRIP
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in mains with severe operating conditions or substantial voltage fluctuations.
All items in this range are also rated for operation at 480V 60Hz

Θ ambient statistical life Permitted overvoltages
U N
400…415 V -50/65 >150,000 h 8h/d 580 V 1min (200×) 680 V MKPg ™ - 275.*** 3PH GAS-FILLED - 400 … 525 V 50 Hz
440 V -50/60 >150,000 h 30min/d 600 V max. peak voltage 1600 V ac
480 V -50/D >150,000 h 5min (200×) 630 V
525 V -50/D >100,000 h

K and II (L4) including discharge resistors. For L and M see resistor modules on pages 48f.

Q N 525V Q N 480V Q C 440V Q C 415V Q C 400V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
2.8 2.5 2 1.8 1.6 3 × 11 3 × 5 60 × 164 0.4 K 275.525-801100 10 / FB8
3.6 3 2.5 — — 3 × 14 3 × 8 60 × 164 0.4 K 275.525-701400 10 / FB8
4.4 3.7 3 — 2.5 3 × 17 3 × 6 60 × 164 0.4 K 275.525-601700 10 / FB8
5 4.1 3.4 3 2.8 3 × 19 3 × 9 65 × 164 0.5 K 275.535-601900 5 / FB8
7.5 6.3 5.2 4.6 4.4 3 × 29 3 × 12 75 × 164 0.7 K 275.545-602900 5 / FB8
10 8.3 7 6.2 5.8 3 × 38 3 × 20 75 × 230 1.0 K 275.546-703800 5 / FB12
12.5 10 8.8 7.5 7.2 3 × 48 3 × 22 75 × 230 1.0 K 275.546-604800 5 / FB12
15 12.5 10.6 9.4 8.8 3 × 58 3 × 30 75 × 245 1.1 K 275.548-605800 5 / FB12
16.6 14.0 11.7 10.4 9.7 3 × 64 3 × 30 85 × 230 1.3 L 275.156-606400 5 / FB12
17.6 15 12.5 11 10.0 3 × 68 3 × 27 85 × 230 1.3 L4 275.256-606800 5 / FB12
18.6 15.6 13.2 11.6 10.8 3 × 72 3 × 29 85 × 245 1.4 L4 275.258-607200 5 / FB12
20 16.7 14 12.5 11.6 3 × 77 3 × 33 95 × 230 1.5 L4 275.266-607700 5 / FB12
21.6 18 15 13.4 12.5 3 × 83 3 × 36 95 × 230 1.5 L4 275.266-608300 3 / FB12
25 20.8 17.4 15.6 14.4 3 × 96 3 × 45 95 × 245 1.7 L4 275.268-609600 3 / FB12
30 25 21 18.6 17.4 3 × 115 3 × 54 116 × 230 2.3 L 275.186-611500 3 / FB12
30 25 21 18.6 17.4 3 × 115 3 × 43 95 × 280 2.3 L4 275.269-611500 3 / FB10
32 26.7 22.4 20 18.6 3 × 123 3 × 48 116 × 230 2.3 L 275.186-612300 3 / FB12
32 26.7 22.4 20 18.6 3 × 123 3 × 46 95 × 280 2.3 L4 275.269-612300 3 / FB10
33.3 28.0 23.4 20.8 19.3 3 × 128 3 × 50 100 × 280 2.4 L 275.179-612800 3 / FB10
37.2 31.1 26 23.2 21.6 3 × 143 3 × 56 116 × 280 2.6 L4 275.289-714301 3 / FB10
40 33.4 28.2 25 23.2 3 × 154 3 × 72 136 × 230 3.7 M 275.396-715401 2 / FB12
43 36 30.2 27 25 3 × 166 3 × 76 136 × 280 4.0 M 275.399-716600 2 / FB10
50 41.7 35 31.2 29 3 × 192 3 × 80 136 × 295 4.1 M 275.39B-719200 2 / FB15
Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 34ff!
