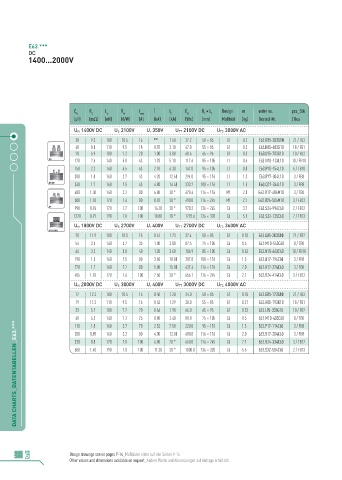

Page 6 - ELECTRONICON_Katalog-E63-Kondensatoren

E63.***
DC
1400...2000V

C R L R I Î I E D × L Design m order no. pcs_Stk
N S e th max S N 1 1
(μF) (mΩ) (nH) (K/W) (A) (kA) (kA) (Ws) (mm) Maßbild (kg) Bestell-Nr. / Box

U N 1400V DC U S 2100V U r 350V U TT 2100V DC U TC 3000V AC

38 9.3 100 10.5 16 0.50 1.50 37.2 50 × 85 G1 0.2 E63.G85-383G10 21 / FB2
48 8.0 110 9.5 18 0.70 2.10 47.0 55 × 85 G1 0.2 E63.H85-483G10 18 / FB1
70 6.9 100 7.2 20 1.00 3.00 68.6 65 × 95 G1 0.3 E63.L95-703G10 10 / FB2
120 2.6 140 5.0 43 1.70 5.10 117.6 85 × 105 L1 0.6 E63.N10-124L10 10 / FB10
150 2.2 140 4.5 43 2.10 6.30 147.0 95 × 105 L1 0.8 E63.P10-154L10 6 / FB10
300 1.8 160 2.7 43 4.20 12.60 294.0 95 × 176 L1 1.3 E63.P17-304L10 3 / FB8
340 1.7 160 2.5 43 4.80 14.40 333.2 100 × 176 L1 1.5 E63.Q17-344L10 3 / FB8
480 1.30 160 2.2 80 6.80 20 * 470.4 116 × 176 M1 2.0 E63.R17-484M10 3 / FB8
500 1.10 170 1.6 80 8.01 20 * 490.0 116 × 245 M1 2.7 E63.R24-504M10 3 / FB12
990 0.94 170 1.7 100 14.10 20 * 970.2 136 × 245 C6 3.7 E63.S24-994C60 2 / FB12
1320 0.91 190 1.0 100 18.80 20 * 1293.6 136 × 320 C6 5.5 E63.S32-135C60 2 / FB13
U N 1800V DC U S 2700V U r 400V U TT 2700V DC U TC 3600V AC

20 11.9 100 10.5 15 0.41 1.23 32.4 50 × 85 G1 0.18 E63.G85-203G10 21 / FB2
54 3.5 140 5.7 35 1.00 3.00 87.5 75 × 105 C6 0.5 E63.M10-543C60 8 / FB0
66 3.2 140 5.0 40 1.20 3.60 106.9 85 × 105 C6 0.63 E63.N10-663C60 10 / FB10
190 1.5 160 2.5 80 3.60 10.80 307.8 100 × 176 C6 1.5 E63.Q17-194C60 3 / FB8
270 1.2 160 2.2 80 5.00 15.00 437.4 116 × 176 C6 2.0 E63.R17-274C60 3 / FB8
405 1.10 170 1.6 100 7.50 20 * 656.1 116 × 245 C6 2.7 E63.R24-414C60 3 / FB12
U N 2000V DC U S 3000V U r 400V U TT 3000V DC U TC 4000V AC

17 12.2 100 10.5 15 0.40 1.20 34.0 50 × 85 G1 0.18 E63.G85-173G10 21 / FB2
19 11.3 110 9.5 16 0.43 1.29 38.0 55 × 85 G1 0.21 E63.H85-193G10 18 / FB1
33 5.2 100 7.2 20 0.66 1.98 66.0 65 × 95 G1 0.33 E63.L95-333G10 10 / FB2
40 4.3 140 7.3 25 0.80 2.40 80.0 75 × 105 C6 0.5 E63.M10-403C60 8 / FB0
DATA CHARTS_DATENTABELLEN_E63.***
110 1.8 160 2.7 70 2.52 7.50 220.0 95 × 176 C6 1.3 E63.P17-114C60 3 / FB8
200 0.89 160 2.2 80 4.00 12.00 400.0 116 × 176 C6 2.0 E63.R17-204C60 3 / FB8
330 0.8 170 2.0 100 6.80 20 * 660.0 116 × 245 C6 2.7 E63.R24-334C60 3 / FB12
500 1.40 190 1.0 100 11.20 20 * 1000.0 136 × 320 C6 5.5 E63.S32-504C60 2 / FB13

6 Design drawings see on pages 9-14_Maßbilder siehe auf den Seiten 9-14
Other values and dimensions available on request_Andere Werte und Abmessungen auf Anfrage erhältlich
