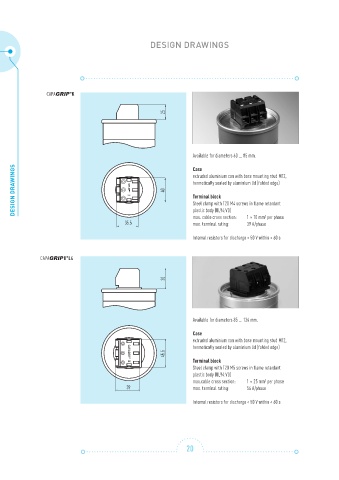

DESIGN DRAWINGS

K

25

Available for diameters 60 ... 85 mm.

DESIGN DRAWINGS 40 40 extruded aluminium can with base mounting stud M12,
Case
hermetically sealed by aluminium lid (folded edge)

Terminal block
Steel clamp with T20 M4 screws in flame retardant

max. cable cross section:
2
max. terminal rating:
39 A/phase
35.5 plastic body (UL94:V0) 1 × 10 mm per phase
Internal resistors for discharge < 50 V within < 60 s

II L4

30

Available for diameters 85 ... 136 mm.

Case
extruded aluminium can with base mounting stud M12,
hermetically sealed by aluminium lid (folded edge)
45 5 .
Terminal block
Steel clamp with T20 M5 screws in flame retardant
plastic body (UL94:V0)
max.cable cross section: 1 × 25 mm per phase
2
39 max. terminal rating: 56 A/phase
Internal resistors for discharge < 50 V within < 60 s

20
