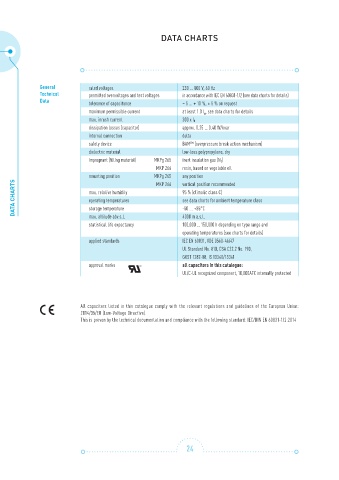

DATA CHARTS

General rated voltages 230 ... 800 V, 60 Hz
Technical permitted overvoltages and test voltages in accordance with IEC EN 60831-1/2 (see data charts for details)
Data tolerance of capacitance – 5 ... + 10 %, ± 5 % on request

maximum permissible current at least 1.3 I , see data charts for details
N
max. inrush current 300 x I N
dissipation losses (capacitor) approx. 0.25 … 0.40 W/kvar
internal connection delta
safety device BAM™ (overpressure break action mechanism)
dielectric material low-loss polypropylene, dry
impregnant (filling material) MKPg 265 inert insulation gas (N 2)
MKP 266 resin, based on vegetable oil
mounting position MKPg 265 any position
DATA CHARTS max. relative humidity 95 % (climatic class C)
vertical position recommended
MKP 266
see data charts for ambient temperature class
operating temperatures
-50 ... +85°C
storage temperature
max. altitude abv.s.l.
100,000 … 150,000 h depending on type range and
statistical life expectancy 4000 m a.s.l.
operating temperatures (see charts for details)
applied standards IEC EN 60831, VDE 0560-46/47
UL Standard No. 810, CSA C22.2 No. 190,
GOST 1282-88, IS 13340/13341
approval marks all capacitors in this catalogue:
UL/C-UL recognized component, 10,000AFC internally protected

All capacitors listed in this catalogue comply with the relevant regulations and guidelines of the European Union:
2014/35/EU (Low-Voltage Directive).
This is proven by the technical documentation and compliance with the following standard: IEC/DIN EN 60831-1/2:2014
