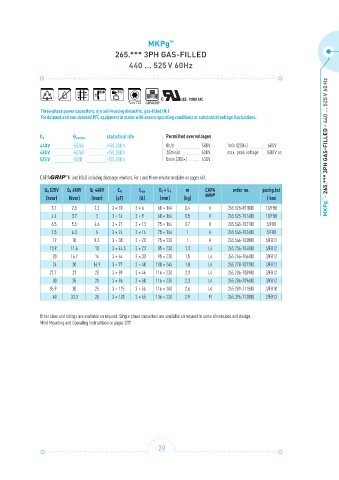

Page 29 - ELECTRONICON_Katalog_PFC-60Hz

MKPg ™
265.*** 3PH GAS-FILLED

440 ... 525 V 60Hz

10000 AFC
Torx T20 CAPAGRIP
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in mains with severe operating conditions or substantial voltage fluctuations.

Θ ambient statistical life Permitted overvoltages
U N
440 V -50/65 >150,000 h 8h/d 580 V 1min (200×) 680 V MKPg ™ - 265.*** 3PH GAS-FILLED - 440 … 525 V 60 Hz
480 V -50/60 >150,000 h 30min/d 600 V max. peak voltage 1600 V ac
525 V -50/D >150,000 h 5min (200×) 630 V

K and II (L4) including discharge resistors. For L and M see resistor modules on pages 46f.

Q N 525V Q N 480V Q C 440V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box

3.1 2.5 2.2 3 × 10 3 × 6 60 × 164 0.4 K 265.525-801000 10/FB8
4.4 3.7 3 3 × 14 3 × 9 60 × 164 0.5 K 265.525-701400 10/FB8
6.5 5.5 4.6 3 × 21 3 × 13 75 × 164 0.7 K 265.545-702100 5/FB8
7.5 6.3 5 3 × 24 3 × 14 75 × 164 1 K 265.545-702400 5/FB8
12 10 8.3 3 × 38 3 × 20 75 × 230 1 K 265.546-703800 5/FB12
13.9 11.6 10 3 × 44.5 3 × 23 85 × 230 1.3 L4 265.256-704500 5/FB12
20 16.7 14 3 × 64 3 × 33 95 × 230 1.5 L4 265.266-706400 3/FB12
24 20 16.9 3 × 77 3 × 40 100 × 245 1.8 L4 265.278-707700 3/FB12
27.7 23 20 3 × 89 3 × 46 116 × 230 2.3 L4 265.286-708900 3/FB12
30 25 21 3 × 96 3 × 50 116 × 230 2.3 L4 265.286-709600 3/FB12
35.9 30 25 3 × 115 3 × 56 116 × 280 2.6 L4 265.289-711500 3/FB10
40 33.3 28 3 × 128 3 × 65 136 × 230 2.9 M 265.396-712800 2/FB12

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 32ff!

29
