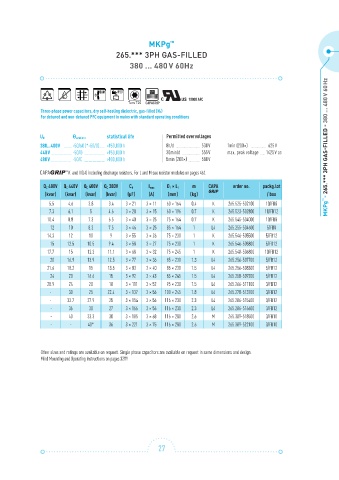

MKPg
™
265.*** 3PH GAS-FILLED
380 ... 480 V 60Hz

10000 AFC
Torx T20 CAPAGRIP
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in mains with standard operating conditions

Θ ambient statistical life Permitted overvoltages
U N
380…400V -50/60 (*-50/D) >150,000 h 8h/d 530 V 1min (200×) 625 V MKPg ™ - 265.*** 3PH GAS-FILLED - 380 … 480 V 60 Hz
440 V -50/D >150,000 h 30min/d 555 V max. peak voltage 1425 V ac
480 V -50/C >100,000 h 5min (200×) 580 V

K and II (L4) including discharge resistors. For L and M see resistor modules on pages 46f.

Q C 480V Q C 440V Q C 400V Q C 380V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
5.5 4.6 3.8 3.4 3 × 21 3 × 11 60 × 164 0.4 K 265.525-502100 10/FB8
7.3 6.1 5 4.6 3 × 28 3 × 15 60 × 196 0.7 K 265.523-502800 10/FB12
10.4 8.8 7.3 6.5 3 × 40 3 × 25 75 × 164 0.7 K 265.545-504000 10/FB8
12 10 8.3 7.5 3 × 46 3 × 25 85 × 164 1 L4 265.255-504600 5/FB8
14.3 12 10 9 3 × 55 3 × 26 75 × 230 1 K 265.546-505500 5/FB12
15 12.5 10.5 9.4 3 × 58 3 × 27 75 × 230 1 K 265.546-505800 5/FB12
17.7 15 12.3 11.1 3 × 68 3 × 32 75 × 245 1 K 265.548-506800 10/FB12
20 16.9 13.9 12.5 3 × 77 3 × 36 85 × 230 1.3 L4 265.256-507700 5/FB12
21.6 18.2 15 13.5 3 × 83 3 × 40 85 × 230 1.5 L4 265.256-508300 5/FB12
24 20 16.6 15 3 × 92 3 × 43 85 × 245 1.5 L4 265.258-509200 5/FB12
28.9 24 20 18 3 × 111 3 × 52 95 × 230 1.5 L4 265.266-511100 3/FB12
- 30 25 22.4 3 × 137 3 × 56 100 × 245 1.8 L4 265.278-513700 3/FB12
- 33.7 27.9 25 3 × 154 3 × 56 116 × 230 2.3 L4 265.286-515400 3/FB12
- 36 30 27 3 × 166 3 × 56 116 × 230 2.3 L4 265.286-516600 3/FB12
- 40 33.3 30 3 × 185 3 × 68 116 × 280 2.6 M 265.389-518500 3/FB10
- - 40* 36 3 × 221 3 × 75 116 × 280 2.6 M 265.389-522100 3/FB10

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 32ff!
