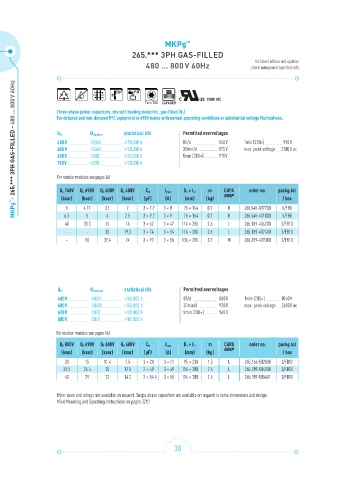

Page 30 - ELECTRONICON_Katalog_PFC-60Hz

MKPg
™
265.*** 3PH GAS-FILLED
for latest edition and updates
480 ... 800 V 60Hz check www.powercapacitors.info

MKPg ™ - 265.*** 3PH GAS-FILLED - 480 … 800 V 60Hz

10000 AFC
Torx T20 CAPAGRIP
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in 690V mains with normal operating conditions or substantial voltage fluctuations.

U N Θ ambient statistical life Permitted overvoltages
480 V -50/65 >150,000 h 8h/d 840 V 1min (200×) 990 V
600 V -50/60 >150,000 h 30min/d 875 V max. peak voltage 2300 V ac
690 V -50/D >130,000 h 5min (200×) 915 V
760 V -50/D >100,000 h

For resistor modules see pages 46f.

Q C 760V Q C 690V Q C 600V Q C 480V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
5 4.17 3.1 2 3 × 7.7 3 × 8 75 × 164 0.7 K 265.545-597700 5/FB8
6.3 5 4 2.5 3 × 9.7 3 × 9 75 × 164 0.7 K 265.545-401000 5/FB8
40 33.3 25 16 3 × 62 3 × 47 116 × 280 2.6 L 265.189-406200 3/FB10
- - 30 19.3 3 × 74 3 × 54 116 × 280 2.6 L 265.189-407400 3/FB10
- 50 37.4 24 3 × 93 3 × 55 136 × 280 3.7 M 265.399-409300 2/FB10

U N Θ ambient statistical life Permitted overvoltages
480 V -50/65 >150,000 h 8h/d 880 V 1min (200×) 1040 V
600 V -50/60 >150,000 h 30min/d 920 V max. peak voltage 2400 V ac
690 V -50/D >130,000 h 5min (200×) 960 V
800 V -50/D >100,000 h

For resistor modules see pages 46f.
Q C 800V Q C 690V Q C 600V Q C 480V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
20 15 11.4 7.5 3 × 28 3 × 21 95 × 230 1.5 L 265.166-502800 3/FB12
35.5 26.4 20 12.5 3 × 49 3 × 49 116 × 280 2.6 L 265.189-504900 3/FB10
40 29 22 14.2 3 × 54.4 3 × 55 116 × 280 2.6 L 265.189-505401 3/FB10

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 32ff!
