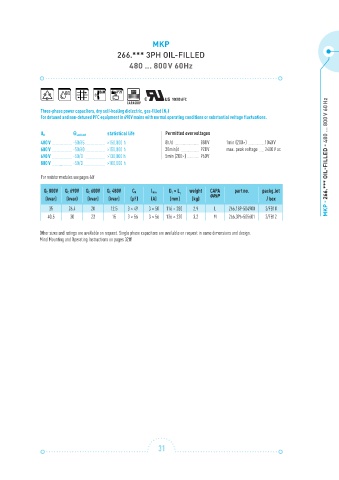

Page 31 - ELECTRONICON_Katalog_PFC-60Hz

MKP

266.*** 3PH OIL-FILLED
480 ... 800 V 60Hz

10000 AFC
CAPAGRIP
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in 690V mains with normal operating conditions or substantial voltage fluctuations.

U N Θ ambient statistical life Permitted overvoltages
480 V -50/65 >150,000 h 8h/d 880 V 1min (200×) 1040 V
600 V -50/60 >150,000 h 30min/d 920 V max. peak voltage 2400 V ac
690 V -50/D >130,000 h 5min (200×) 960 V MKP - 266.*** OIL-FILLED - 480 … 800 V 60 Hz
800 V -50/D >100,000 h

For resistor modules see pages 46f

Q C 800V Q C 690V Q C 600V Q C 480V C N I max D × L 1 weight CAPA part no. packg.lot
1
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
35 26.4 20 12.5 3 × 49 3 × 50 116 × 280 2.9 L 266.189-504900 3/FB10
40.5 30 23 15 3 × 56 3 × 56 136 × 230 3.2 M 266.396-505601 2/FB12

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 32ff!
