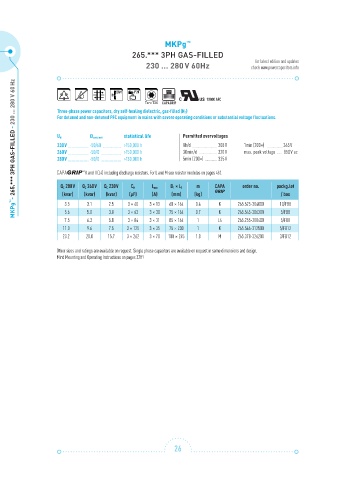

Page 26 - ELECTRONICON_Katalog_PFC-60Hz

MKPg
™
265.*** 3PH GAS-FILLED
for latest edition and updates
230 ... 280 V 60Hz check www.powercapacitors.info

MKPg ™ - 265.*** 3PH GAS-FILLED - 230 … 280 V 60 Hz

10000 AFC
Torx T20 CAPAGRIP
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in mains with severe operating conditions or substantial voltage fluctuations.

U N Θ ambient statistical life Permitted overvoltages
230 V -50/60 >150,000 h 8h/d 308 V 1min (200×) 365 V
260 V -50/D >150,000 h 30min/d 320 V max. peak voltage 850 V ac
280 V -50/D >130,000 h 5min (200×) 335 V

K and II (L4) including discharge resistors. For L and M see resistor modules on pages 46f.

Q C 280 V Q C 260 V Q C 230 V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
3.5 3.1 2.5 3 × 40 3 × 13 60 × 164 0.4 K 265.525-304000 10/FB8
5.6 5.0 3.8 3 × 63 3 × 30 75 × 164 0.7 K 265.545-306300 5/FB8
7.5 6.3 5.0 3 × 84 3 × 31 85 × 164 1 L4 265.255-308400 5/FB8
11.0 9.6 7.5 3 × 125 3 × 35 75 × 230 1 K 265.546-312500 5/FB12
23.2 20.0 15.7 3 × 262 3 × 70 100 × 245 1.8 M 265.378-326200 3/FB12

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 32ff!

26
