P. 25

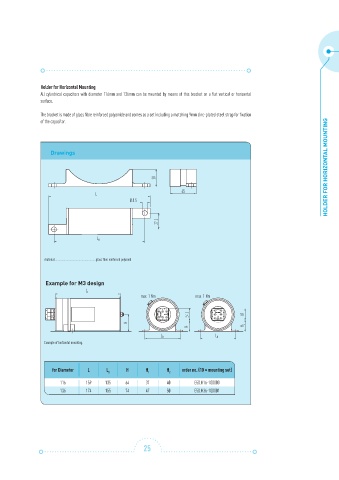

Holder for Horizontal Mounting
All cylindrical capacitors with diameter 116mm and 136mm can be mounted by means of this bracket on a flat vertical or horizontal
surface.
The bracket is made of glass fibre reinforced polyamide and comes as a set including a matching 9mm zinc-plated steel strap for fixation
of the capacitor.
HOLDER FOR HORIZONTAL MOUNTING
Drawings
material .......................................................glass fibre reinforced polyamid
Example for M3 design
Example of horizontal mounting.
×
for Diameter L L 0 H H 1 H 2 order no. (10 × mounting set)
116 159 135 64 37 40 E50.H16-100000
136 174 155 74 47 50 E50.H36-100001
