P. 21

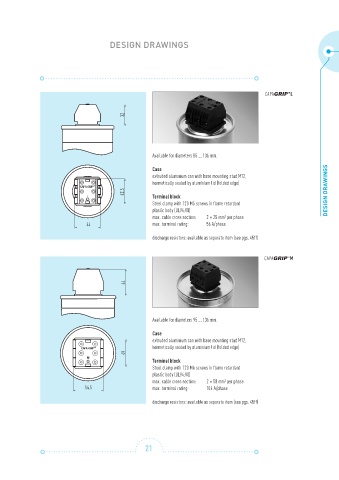

DESIGN DRAWINGS
L
32
Available for diameters 85 ... 136 mm.
Case
extruded aluminium can with base mounting stud M12,
hermetically sealed by aluminium lid (folded edge)
42.5 Terminal block DESIGN DRAWINGS
Steel clamp with T20 M5 screws in flame retardant
plastic body (UL94:V0)
max. cable cross section: 2 × 25 mm per phase
2
44 max. terminal rating: 56 A/phase
discharge resistors: available as separate item (see pgs. 45ff)
M
44
Available for diameters 95 ... 136 mm.
Case
extruded aluminium can with base mounting stud M12,
hermetically sealed by aluminium lid (folded edge)
49
Terminal block
Steel clamp with T20 M6 screws in flame retardant
plastic body (UL94:V0)
max. cable cross section: 2 × 50 mm per phase
2
54 5 max. terminal rating: 104 A/phase
.
discharge resistors: available as separate item (see pgs. 45ff)
21
