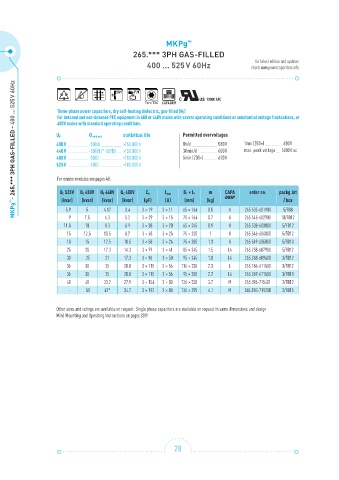

Page 28 - ELECTRONICON_Katalog_PFC-60Hz

MKPg
™
265.*** 3PH GAS-FILLED

for latest edition and updates
400 ... 525 V 60Hz check www.powercapacitors.info

MKPg ™ - 265.*** 3PH GAS-FILLED - 400 … 525 V 60Hz

10000 AFC
2
x
T
r
Torx T20 0 CAPAGRIP
To
Three-phase power capacitors, dry self-healing dielectric, gas-filled (N 2)
For detuned and non-detuned PFC equipment in 400 or 440V mains with severe operating conditions or substantial voltage fluctuations, or
480V mains with standard operating conditions.
U N Θ ambient statistical life Permitted overvoltages
400 V -50/65 >150,000 h 8h/d 580 V 1min (200×) 680 V
440 V -50/60 (*-50/D) >150,000 h 30min/d 600 V max. peak voltage 1600 V ac
480 V -50/D >150,000 h 5min (200×) 630 V
525 V -50/D >100,000 h

For resistor modules see pages 46f.

Q C 525V Q C 480V Q C 440V Q C 400V C N I max D 1 × L 1 m CAPA order no. packg.lot
(kvar) (kvar) (kvar) (kvar) (µF) (A) (mm) (kg) GRIP / box
5.9 5 4.17 3.4 3 × 19 3 × 11 65 × 164 0.5 K 265.535-601900 5/FB8
9 7.5 6.3 5.2 3 × 29 3 × 15 75 × 164 0.7 K 265.545-602900 10/FB12
11.8 10 8.3 6.9 3 × 38 3 × 20 65 × 245 0.9 K 265.538-603800 5/FB12
15 12.5 10.5 8.7 3 × 48 3 × 25 75 × 230 1 K 265.546-604800 5/FB12
18 15 12.5 10.5 3 × 58 3 × 26 75 × 280 1.3 K 265.549-605800 5/FB10
25 20 17.3 14.3 3 × 79 3 × 41 85 × 245 1.5 L4 265.258-607900 5/FB12
30 25 21 17.3 3 × 96 3 × 50 95 × 245 1.8 L4 265.268-609600 3/FB12
36 30 25 20.8 3 × 115 3 × 56 116 × 230 2.3 L 265.186-611500 3/FB12
36 30 25 20.8 3 × 115 3 × 56 95 × 280 2.2 L4 265.269-611500 3/FB10
48 40 33.7 27.9 3 × 154 3 × 80 136 × 230 3.7 M 265.396-715401 2/FB12
- 50 42* 34.7 3 × 192 3 × 80 136 × 295 4.1 M 265.39B-719200 2/FB15

Other sizes and ratings are available on request. Single phase capacitors are available on request in same dimensions and design.
Mind Mounting and Operating Instructions on pages 32ff!
