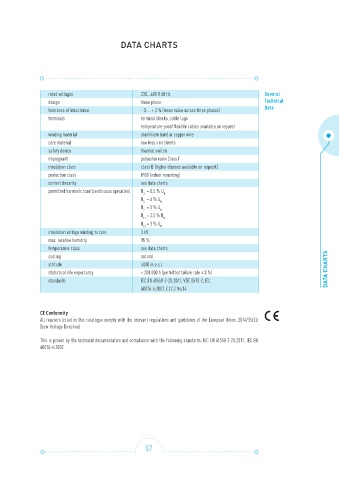

DATA CHARTS

rated voltages 230...480 V 60 Hz General
design three phase Technical
tolerance of inductance - 3 ... + 3 % (mean value across three phases) Data
terminals terminal blocks, cable lugs
temperature-proof flexible cables available on request
winding material aluminium band or copper wire
core material low loss iron sheets
safety device thermal switch
impregnant polyester resin Class F
insulation class class B (higher classes available on request)
protection class IP00 (indoor mounting)
current linearity see data charts
permitted harmonic load (continuous operation) U = 0.5 % U
3 N
U = 6 % U N
5
U = 5 % U N
7
U = 3.5 % U N
11
U = 3 % U N
13
insulation voltage winding to core 3 kV
max. relative humidity 95 %
temperature class see data charts
cooling natural
altitude 4000 m.a.s.l.
statistical life expectancy > 200 000 h (permitted failure rate ≤ 3 %) DATA CHARTS
standards IEC EN 61558-2-20:2011, VDE 0570-2, IEC
60076-6:2007, C22.2 No.14

CE Conformity
All reactors listed in this catalogue comply with the relevant regulations and guidelines of the European Union: 2014/35/EU
(Low-Voltage Directive)

This is proven by the technical documentation and compliance with the following standards: IEC EN 61558-2-20:2011, IEC EN
60076-6:2007
