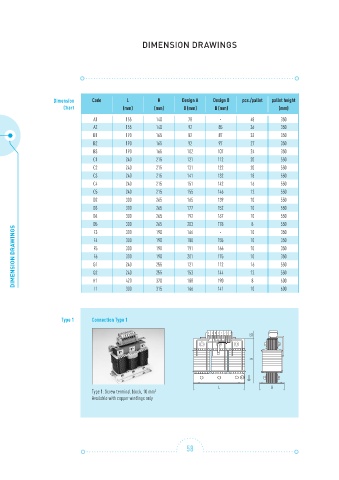

DIMENSION DRAWINGS

Dimension Code L H Design A Design B pcs./pallet pallet height
Chart (mm) (mm) B (mm) B (mm) (mm)
A1 155 140 78 - 48 350
A2 155 140 92 85 36 350
B1 190 165 82 87 33 350
B2 190 165 92 97 27 350
B3 190 165 102 107 24 350
C1 240 215 121 112 20 550
C2 240 215 131 122 20 550
C3 240 215 141 132 18 550
C4 240 215 151 142 16 550
C5 240 215 155 146 12 550
D2 300 265 165 139 10 550
D3 300 265 177 152 10 550
D4 300 265 192 167 10 550
D5 300 265 203 178 10 550
8
DIMENSION DRAWINGS F4 300 190 180 155 10 350
190
300
350
-
166
F3
350
166
F5
191
190
300
10
190
10
201
350
300
F6
175
112
16
121
255
G1
550
240
144
G2
12
153
255
550
240
H1
8
600
315
166
141
I1 420 370 188 190 10 600
300
Type 1 Connection Type 1
U V W X Y Z T T
55
H
L B
Type 1: Screw terminal block, 10 mm 2
Available with copper windings only
