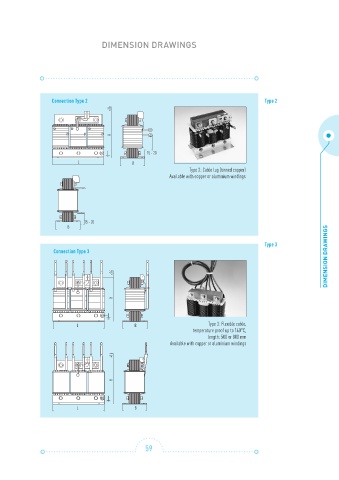

DIMENSION DRAWINGS
Connection Type 2 Type 2
16
H
15 −20
15 −20
L B B
Type 2: Cable lug (tinned copper)
16
Available with copper or aluminium windings
H
15 −20
15 −20
L B B
DIMENSION DRAWINGS
Type 3
Connection Type 3
16 16
H H
Type 3: Flexible cable,
L B L B
temperature proof up to 140°C,
length: 500 or 800 mm
Available with copper or aluminium windings
16 16
H H
L B L B
