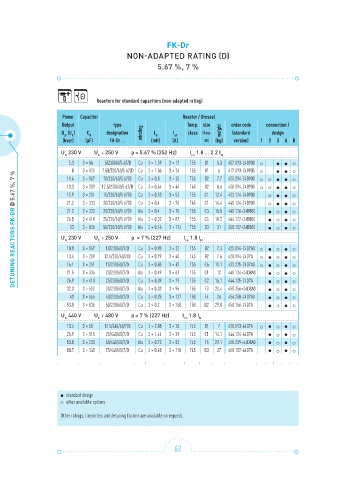

FK-Dr

NON-ADAPTED RATING (D)
5.67 %, 7 %

Reactors for standard capacitors (non-adapted rating)

Power Capacitor Reactor / Drossel
Output type Temp. size order code connection /
Q (U ) C N designation winding L N I eff class (S.pg. weight (standard design
N
LC
(kvar) (µF) FK-Dr ... (mH) (A) 58) (kg) version) 1 2 3 A B
U 230 V U ≤ 250 V p = 5.67 % (252 Hz) I 1.8 ... 2.2 I
C
N
lin
N
5.3 3 × 84 5/230/60/5.67/D Cu 3 × 1.59 3 × 17 T55 B1 5.3 407.093-24B900
8 3 × 125 7.50/230/60/5.67/D Cu 3 × 1.06 3 × 26 T55 B1 6 417.093-24B905
DETUNING REACTORS FK-DR D 5.67 %, 7 %
10.6 3 × 167 10/230/60/5.67/D Cu 3 × 0.8 3 × 35 T55 B2 7.7 425.094-24B900
13.3 3 × 209 12.5/230/60/5.67/D Cu 3 × 0.64 3 × 44 T45 B2 8.6 428.094-24B905
15.9 3 × 251 15/230/60/5.67/D Cu 3 × 0.53 3 × 52 T55 C1 12.4 433.124-24B900
21.2 3 × 333 20/230/60/5.67/D Cu 3 × 0.4 3 × 70 T45 C1 14.4 440.124-24B900
21.2 3 × 333 20/230/60/5.67/D Alu 3 × 0.4 3 × 70 T55 C3 15.5 440.126+24B800
26.5 3 × 418 25/230/60/5.67/D Alu 3 × 0.32 3 × 87 T55 C4 18.2 444.127+24B800
53 3 × 836 50/230/60/5.67/D Alu 3 × 0.16 3 × 174 T55 D3 31 458.157+24B800
U 230 V U ≤ 250 V p = 7 % (227 Hz) I 1.8 I N
N
lin
C
10.8 3 × 167 10/230/60/7/D Cu 3 × 0.98 3 × 32 T55 B2 7.3 425.094-24D7A0
13.4 3 × 209 12.5/230/60/7/D Cu 3 × 0.79 3 × 40 T45 B2 7.6 428.094-24D7A
16.1 3 × 251 15/230/60/7/D Cu 3 × 0.65 3 × 47 T55 C6 11.1 433.225-24D7A0
21.5 3 × 334 20/230/60/7/D Alu 3 × 0.49 3 × 63 T55 C1 12 440.124+24D8A0
26.9 3 × 418 25/230/60/7/D Cu 3 × 0.39 3 × 79 T55 C2 16.1 444.125-24D7A
32.3 3 × 502 30/230/60/7/D Alu 3 × 0.33 3 × 95 T55 F3 20.4 450.256+24D8A0
43 3 × 666 40/230/60/7/D Cu 3 × 0.25 3 × 127 T50 F4 26 454.258-24D7A0
53.8 3 × 836 50/230/60/7/D Cu 3 × 0.2 3 × 158 T50 D2 29.8 458.156-24D7A
U 440 V U ≤ 480 V p = 7 % (227 Hz) I 1.8 I N
lin
N
C
13.4 3 × 58 12.5/440/60/7/D Cu 3 × 2.88 3 × 20 T45 B1 7 428.093-44D7A
26.9 3 × 115 25/440/60/7/D Cu 3 × 1.44 3 × 39 T45 C1 14.1 444.124-44D7A
53.8 3 × 230 50/440/60/7/D Alu 3 × 0.72 3 × 83 T45 F5 29.1 458.259+44D8A0
80.7 3 × 345 75/440/60/7/D Cu 3 × 0.48 3 × 118 T45 D3 37 468.157-44D7A

standard design
other available options

Other ratings, linearities and detuning factors are available on request.
