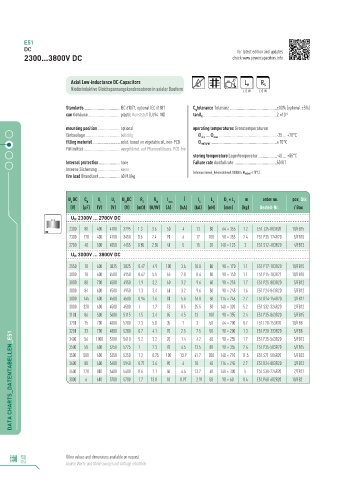

Page 6 - ELECTRONICON_Katalog_E51_E53_E55
P. 6
E51
DC for latest edition and updates
2300...3800V DC check www.powercapacitors.info
Axial Low-inductance DC-Capacitors
Niederinduktive Gleichspannungskondensatoren in axialer Bauform LO W LO W
Standards ...................................IEC 61071, optional IEC 61881 C tolerance Toleranz ..............................................±10% (optional ±5%)
N
can Gehäuse ...............................plastic Kunststoff (UL94: VO) tanδ ........................................................................2 ××10 -4
0
mounting position ......................optional operating temperatures Grenztemperaturen
Einbaulage ..................................beliebig Θ ... Θ max .........................................................-25 ... +70°C
min
filling material ................................solid, based on vegetable oil, non-PCB Θ HOTSPOT ................................................................≤ 70°C
Füllmittel ...................................ausgehärtet, auf Pflanzenölbasis, PCB-frei
storing temperature Lagertemperatur ..................-40 ... +85°C
Internal protection .....................none Failure rate Ausfallrate .........................................50 FIT
Interne Sicherung ......................keine (reference interval_Referenzintervall 100000 h, Θ HOTSPOT ≤ 70°C)
fire load Brandlast .....................40 MJ/kg
U DC C N U r U S U DC R S R th I max Î I S L e D ×× L 1 m order no. pcs_Stk
TT
N
1
(V) (µF) (V) (V) (V) (mΩ) (K/W) (A) (kA) (kA) (nH) (mm) (kg) Bestell-Nr. / Box
U N 2300V ... 2700V DC
2300 80 400 4100 3795 1.3 3.6 50 4 13 80 64 × 355 1.2 E51.L35-803R20 10/FB15
2300 170 400 4100 3450 0.6 2.4 90 6 17 100 90 × 355 2.4 E51.P35-174R20 5/FB15
2700 40 500 4050 4455 0.85 2.55 40 5 15 20 140 × 125 2 E51.S12-403R20 4/FB12
U N 3000V ... 3800V DC
2550 10 600 3825 3825 0.47 4.9 100 3.6 10.8 80 90 × 170 1.1 E51.P17-103R20 10/FB15
3000 18 600 4500 4950 0.62 5.5 65 2.8 8.4 80 90 × 150 1.1 E51.P15-183R21 10/FB10
3000 80 700 4500 4950 1.9 3.2 60 3.2 9.6 60 90 × 255 1.7 E51.P25-803R20 5/FB12
3000 84 600 4500 4950 1.3 3.4 60 3.2 9.6 50 90 × 245 1.6 E51.P24-843R20 5/FB12
3000 145 600 4500 4500 0.94 2.6 80 5.6 16.8 50 116 × 245 2.7 E51.R24-154R20 3/FB12
3000 320 600 4500 4500 1 1.7 75 8.5 25.5 50 140 × 320 5.2 E51.S32-324R20 2/FB12
3100 86 500 5600 5115 1.5 2.4 65 4.5 13 100 90 × 355 2.4 E51.P35-863R20 5/FB15
3200 15 700 4800 5280 2.3 5.8 35 1 3 50 64 × 200 0.7 E51.L20-153R20 10/FB8
3200 33 700 4800 5280 0.7 4.1 70 2.5 7.5 50 90 × 200 1.3 E51.P20-333R20 5/FB8
DATA CHARTS_DATENTABELLEN_E51
3400 56 1000 5100 5610 5.2 3.2 20 1.4 4.2 60 90 × 255 1.7 E51.P25-563R20 5/FB12
3500 50 600 5250 5775 1 2.3 70 4.5 13.5 80 90 × 355 2.4 E51.P35-503R20 5/FB15
3500 500 600 5250 5250 1.2 0.75 100 13.9 41.7 200 140 × 710 11.5 E51.S71-504R20 5/FB22
3600 80 600 5400 5940 0.71 2.6 90 6 18 40 116 × 245 2.7 E51.R24-803R20 3/FB12
3600 220 800 5400 5400 0.6 1.1 40 4.4 13.2 40 140 × 300 5 E51.S30-224R20 2/FB12
3800 6 600 5700 5700 1.7 13.8 10 0.97 2.91 50 90 × 60 0.4 E51.P60-602R20 10/FB2
6 Other values and dimensions available on request
Andere Werte und Abmessungen auf Anfrage erhältlich
