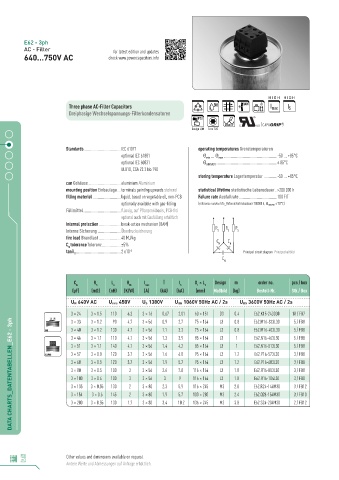

E62 - 3ph
AC - Filter for latest edition and updates
640...750V AC check www.powercapacitors.info

HIGH HIGH
Three phase AC-Filter Capacitors
Dreiphasige Wechselspannungs-Filterkondensatoren
( )

Design L/M Torx T20

Standards ....................................IEC 61071 operating temperatures Grenztemperaturen
optional IEC 61881 Θ ... Θ max ....................................................-50 ... +85°C
min
optional IEC 60831 Θ HOTSPOT ............................................................≤ 85°C
UL810, CSA 22.2 No.190
storing temperature Lagertemperatur .............-50 ... +85°C
can Gehäuse ................................aluminium Aluminium
mounting position Einbaulage ....terminals pointing upwards stehend statistical lifetime statistische Lebensdauer ..>200 000 h
filling material ............................liquid, based on vegetable oil, non-PCB Failure rate Ausfallrate .....................................100 FIT
optionally available with gas-filling (reference service life_Referenzbetriebsdauer 100000 h, Θ HOTSPOT ≤ 70°C)
Füllmittel .....................................flüssig, auf Pflanzenölbasis, PCB-frei
optional auch mit Gasfüllung erhältlich
Internal protection ......................break-action mechanism (BAM)
Interne Sicherung .......................Überdrucksicherung S R R S R S
fire load Brandlast ......................40 MJ/kg C C
C toleranceToleranz ...................±5% N N
N

tanδ 0 ............................................2 x10 -4 Principal circuit diagram_Prinzipschaltbild
C
N

C N R S L e R th I max Î I S D × L 1 Design m order no. pcs / box
1
(µF) (mΩ) (nH) (K/W) (A) (kA) (kA) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
1380V U BB 1060V 50Hz AC / 2s U BG 3600V 50Hz AC / 2s
U N 640V AC U rms 450V U S
3 × 24 3 × 1.5 110 6.3 3 × 16 0.67 2.01 60 × 151 D3 0.4 E62.K15-243D30 18 / FB7
DATA CHARTS_DATENTABELLEN_E62 - 3ph
3 × 33 3 × 1.2 90 4.7 3 × 56 0.9 2.7 75 × 164 L3 0.8 E62.M16-333L30 5 / FB8
3 × 40 3 × 1.2 130 4.7 3 × 56 1.1 3.3 75 × 164 L3 0.8 E62.M16-403L30 5 / FB8
3 × 46 3 × 1.1 110 4.1 3 × 56 1.3 3.9 85 × 164 L3 1 E62.N16-463L30 5 / FB8
3 × 51 3 × 1.1 140 4.1 3 × 56 1.4 4.2 85 × 164 L3 1 E62.N16-513L30 5 / FB8
3 × 57 3 × 0.8 120 3.7 3 × 56 1.6 4.8 95 × 164 L3 1.2 E62.P16-573L30 3 / FB8
3 × 68 3 × 0.5 120 3.7 3 × 56 1.9 5.7 95 × 164 L3 1.2 E62.P16-683L30 3 / FB8
3 × 80 3 × 0.5 100 3 3 × 56 2.6 7.8 116 × 164 L3 1.8 E62.R16-803L30 3 / FB8
3 × 100 3 × 0.4 100 3 3 × 56 3 9 116 × 164 L3 1.8 E62.R16-104L30 3 / FB8
3 × 135 3 × 0.55 130 2 3 × 80 2.3 5.9 116 × 245 M3 2.8 E62.R24-144M30 3 / FB12
3 × 154 3 × 0.6 145 2 3 × 80 1.9 5.7 100 × 280 M3 2.4 E62.Q28-154M30 3 / FB10
3 × 200 3 × 0.55 130 1.7 3 × 80 3.4 10.2 136 × 245 M3 3.8 E62.S24-204M30 2 / FB12

6 Other values and dimensions available on request.
Andere Werte und Abmessungen auf Anfrage erhältlich.
