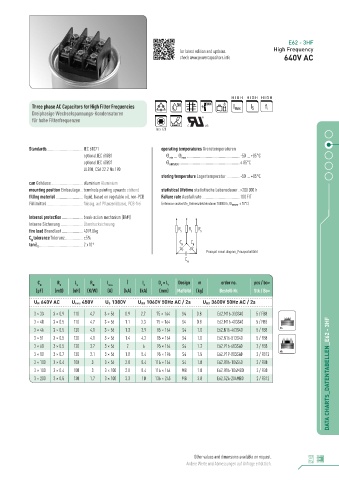

Page 9 - 160722-E62-3ph-3HF_Komplett_WEB
P. 9
E62 - 3HF
for latest edition and updates High Frequency
check www.powercapacitors.info 640V AC
HIGH HIGH HIGH
Three phase AC Capacitors for High Filter Frequencies
Dreiphasige Wechselspannungs-Kondensatoren
für hohe Filterfrequenzen
Torx T20
Standards ...................................IEC 61071 operating temperatures Grenztemperaturen
optional IEC 61881 Θ ... Θ max ....................................................-50 ... +85°C
min
optional IEC 60831 Θ HOTSPOT ............................................................≤ 85°C
UL810, CSA 22.2 No.190
storing temperature Lagertemperatur .............-50 ... +85°C
can Gehäuse ...............................aluminium Aluminium
mounting position Einbaulage ...terminals pointing upwards stehend statistical lifetime statistische Lebensdauer ..>200 000 h
filling material ...........................liquid, based on vegetable oil, non-PCB Failure rate Ausfallrate .....................................100 FIT
Füllmittel ....................................flüssig, auf Pflanzenölbasis, PCB-frei (reference service life_Referenzbetriebsdauer 100000 h, Θ HOTSPOT ≤ 70°C)
Internal protection .....................break-action mechanism (BAM)
Interne Sicherung ......................Überdrucksicherung
fire load Brandlast .....................40 MJ/kg S R R S R S
C toleranceToleranz ..................±5%
N
tanδ 0 ...........................................2 x10 -4 C N C N
Principal circuit diagram_Prinzipschaltbild
C
N
C N R S L e R th I ma× Î I S D × L 1 Design m order no. pcs / bo×
1
(µF) (mΩ) (nH) (K/W) (A) (kA) (kA) (mm) Maßbild (kg) Bestell-Nr. Stk / Bo×
1380V U BB 1060V 50Hz AC / 2s U BG 3600V 50Hz AC / 2s
U N 640V AC U rms 450V U S
3 × 33 3 × 0.9 110 4.7 3 × 39 0.9 2.7 75 × 164 S4 0.8 E62.M16-333S40 5 / FB8
3 × 40 3 × 0.5 110 4.7 3 × 39 1.1 3.3 75 × 164 S4 0.8 E62.M16-403S40 5 / FB8
3 × 46 3 × 0.5 120 4.1 3 × 56 1.3 3.9 85 × 164 S4 1.0 E62.N16-463S40 5 / FB8 S4
3 × 51 3 × 0.5 120 4.1 3 × 56 1.4 4.2 85 × 164 S4 1.0 E62.N16-513S40 5 / FB8
3 × 68 3 × 0.5 120 3.7 3 × 56 2 6 95 × 164 S4 1.2 E62.P16-683S40 3 / FB8
3 × 80 3 × 0.7 130 3.1 3 × 56 1.8 5.4 95 × 196 S4 1.5 E62.P19-803S40 3 / FB12
3 × 100 3 × 0.4 100 3 3 × 56 2.8 8.4 116 × 164 S4 1.8 E62.R16-104S40 3 / FB8
3 × 100 3 × 0.4 100 3 3 × 100 2.8 8.4 116 × 164 MB 1.8 E62.R16-104MB0 3 / FB8
3 × 200 3 × 0.5 130 1.7 3 × 100 3.3 10 136 × 245 MB 3.8 E62.S24-204MB0 2 / FB12 DATA CHARTS_DATENTABELLEN_E62 - 3HF
Other values and dimensions available on request. 9
Andere Werte und Abmessungen auf Anfrage erhältlich.
