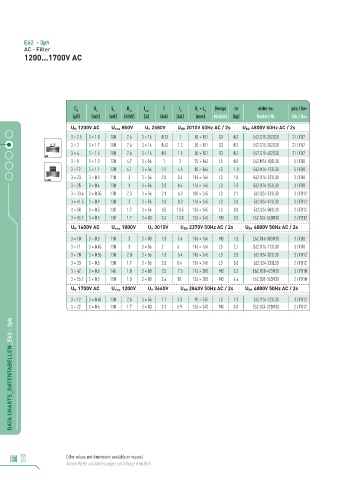

P. 8
E62 - 3ph
AC - Filter
1200...1700V AC
C N R S L e R th I ma× Î I S D × L 1 Design m order no. pcs / bo×
1
(µF) (mΩ) (nH) (K/W) (A) (kA) (kA) (mm) Maßbild (kg) Bestell-Nr. Stk / Bo×
2580V U BB 2010V 50Hz AC / 2s U BG 4800V 50Hz AC / 2s
U N 1200V AC U rms 850V U S
3 × 2.5 3 × 1.8 100 7.6 3 × 16 0.33 1 50 × 151 D3 0.3 E62.G15-252D30 21 / FB7
3 × 3 3 × 1.7 100 7.6 3 × 16 0.43 1.3 50 × 151 D3 0.3 E62.G15-302D30 21 / FB7
3 × 4 3 × 1.6 100 7.6 3 × 16 0.5 1.5 50 × 151 D3 0.3 E62.G15-402D30 21 / FB7
3 × 8 3 × 1.3 120 4.7 3 × 56 1 3 75 × 164 L3 0.8 E62.M16-802L30 5 / FB8
3 × 12 3 × 1.1 120 4.1 3 × 56 1.5 4.5 85 × 164 L3 1.0 E62.N16-123L30 5 / FB8
3 × 23 3 × 0.5 110 3 3 × 56 2.8 8.4 116 × 164 L3 1.8 E62.R16-233L30 3 / FB8
3 × 25 3 × 0.4 130 3 3 × 56 2.8 8.4 116 × 164 L3 1.8 E62.R16-253L30 3 / FB8
3 × 33.4 3 × 0.55 130 2.3 3 × 56 2.1 6.3 100 × 245 L3 2.1 E62.Q24-333L30 3 / FB12
3 × 41.5 3 × 0.9 130 2 3 × 56 2.8 8.3 116 × 245 L3 2.8 E62.R24-413L30 3 / FB12
3 × 50 3 × 0.5 130 1.7 3 × 56 3.5 10.5 136 × 245 L3 3.8 E62.S24-503L30 2 / FB12
3 × 55.7 3 × 0.5 130 1.7 3 × 80 3.6 10.8 136 × 245 M3 3.8 E62.S24-563M30 2 / FB12
3010V U BB 2370V 50Hz AC / 2s U BG 4800V 50Hz AC / 2s
U N 1400V AC U rms 1000V U S
3 × 10 3 × 0.5 110 3 3 × 80 1.8 5.4 116 × 164 M3 1.8 E62.R16-103M30 3 / FB8
3 × 11 3 × 0.45 130 3 3 × 56 2 6 116 × 164 L3 2.1 E62.R16-113L30 3 / FB8
3 × 20 3 × 0.55 130 2.0 3 × 56 1.8 5.4 116 × 245 L3 2.8 E62.R24-203L30 3 / FB12
3 × 33 3 × 0.5 130 1.7 3 × 56 2.8 8.4 136 × 245 L3 3.8 E62.S24-333L30 2 / FB12
3 × 42 3 × 0.6 145 1.8 3 × 80 2.5 7.5 116 × 280 M3 3.2 E62.R28-423M30 3 / FB10
3 × 55.7 3 × 0.5 150 1.5 3 × 80 3.4 10 136 × 280 M3 4.4 E62.S28-563M30 2 / FB10
3660V U BB 2840V 50Hz AC / 2s U BG 4800V 50Hz AC / 2s
U N 1700V AC U rms 1200V U S
3 × 12 3 × 0.65 130 2.5 3 × 56 1.1 3.3 95 × 245 L3 1.9 E62.P24-123L30 3 / FB12
3 × 22 3 × 0.6 130 1.7 3 × 80 2.3 6.9 136 × 245 M3 3.8 E62.S24-223M30 2 / FB12
DATA CHARTS_DATENTABELLEN_E62 - 3ph
8 Other values and dimensions available on request.
Andere Werte und Abmessungen auf Anfrage erhältlich.
