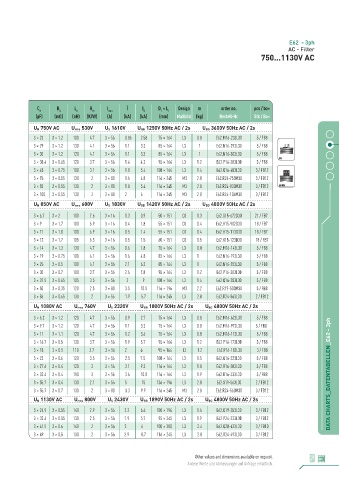

P. 7
E62 - 3ph
AC - Filter
750...1130V AC
C N R S L e R th I ma× Î I S D × L 1 Design m order no. pcs / bo×
1
(µF) (mΩ) (nH) (K/W) (A) (kA) (kA) (mm) Maßbild (kg) Bestell-Nr. Stk / Bo×
1610V U BB 1250V 50Hz AC / 2s U BG 3600V 50Hz AC / 2s
U N 750V AC U rms 530V U S
3 × 23 3 × 1.2 100 4.7 3 × 56 0.86 2.58 75 × 164 L3 0.8 E62.M16-233L30 5 / FB8
3 × 29 3 × 1.2 130 4.1 3 × 56 1.1 3.3 85 × 164 L3 1 E62.N16-293L30 5 / FB8
3 × 30 3 × 1.2 120 4.1 3 × 56 1.1 3.3 85 × 164 L3 1 E62.N16-303L30 5 / FB8
3 × 38.4 3 × 0.65 120 3.7 3 × 56 1.4 4.2 95 × 164 L3 1.2 E62.P16-383L30 3 / FB8
3 × 48 3 × 0.75 100 3.1 3 × 56 1.8 5.4 100 × 164 L3 1.4 E62.Q16-483L30 3 / FB12
3 × 75 3 × 0.55 130 2 3 × 80 1.6 4.8 116 × 245 M3 2.8 E62.R24-753M30 3 / FB12
3 × 83 3 × 0.55 130 2 3 × 80 1.8 5.4 116 × 245 M3 2.8 E62.R24-833M30 3 / FB12
3 × 100 3 × 0.55 130 2 3 × 80 2 6 116 × 245 M3 2.8 E62.R24-104M30 3 / FB12
1830V U BB 1420V 50Hz AC / 2s U BG 4800V 50Hz AC / 2s
U N 850V AC U rms 600V U S
3 × 6.7 3 × 2 100 7.6 3 × 16 0.3 0.9 50 × 151 D3 0.3 E62.G15-672D30 21 / FB7
3 × 9 3 × 1.7 100 6.9 3 × 16 0.4 1.8 55 × 151 D3 0.4 E62.H15-902D30 18 / FB7
3 × 11 3 × 1.8 100 6.9 3 × 16 0.5 1.4 55 × 151 D3 0.4 E62.H15-113D30 18 / FB7
3 × 12 3 × 1.7 105 6.3 3 × 16 0.5 1.5 60 × 151 D3 0.5 E62.K15-123D30 18 / FB7
3 × 14 3 × 1.3 130 4.7 3 × 56 0.6 1.8 75 × 164 L3 0.8 E62.M16-143L30 5 / FB8
3 × 19 3 × 0.75 100 4.1 3 × 56 1.6 4.8 85 × 164 L3 1 E62.N16-193L30 5 / FB8
3 × 25 3 × 0.5 100 4.1 3 × 56 2.1 6.3 85 × 164 L3 1 E62.N16-253L30 3 / FB8
3 × 30 3 × 0.7 100 3.7 3 × 56 2.6 7.8 95 × 164 L3 1.2 E62.P16-303L30 3 / FB8
3 × 37.5 3 × 0.65 105 3.5 3 × 56 3 9 100 × 164 L3 1.4 E62.Q16-383L30 3 / FB8
3 × 50 3 × 0.35 120 2.5 3 × 80 3.5 10.5 116 × 196 M3 2.2 E62.R19-503M30 3 / FB8
3 × 86 3 × 0.65 130 2 3 × 56 1.9 5.7 116 × 245 L3 2.8 E62.R24-863L30 2 / FB12
2320V U BB 1800V 50Hz AC / 2s U BG 4800V 50Hz AC / 2s
U N 1080V AC U rms 760V U S
3 × 6.2 3 × 1.2 120 4.7 3 × 56 0.9 2.7 75 × 164 L3 0.8 E62.M16-622L30 5 / FB8
3 × 9.7 3 × 1.2 120 4.7 3 × 56 1.1 3.3 75 × 164 L3 0.8 E62.M16-972L30 5 / FB8
3 × 11 3 × 1.1 120 4.7 3 × 56 1.2 3.6 75 × 164 L3 0.8 E62.M16-113L30 5 / FB8
3 × 16.7 3 × 0.5 130 3.7 3 × 56 1.9 5.7 95 × 164 L3 1.2 E62.P16-173L30 3 / FB8
3 × 18.4 3 × 0.5 110 3.7 3 × 56 2 6 95 × 164 L3 1.2 E62.P16-183L30 3 / FB8
3 × 22 3 × 0.6 120 3.5 3 × 56 2.5 7.5 100 × 164 L3 1.5 E62.Q16-223L30 3 / FB8
3 × 27.6 3 × 0.4 120 3 3 × 56 3.1 9.3 116 × 164 L3 1.8 E62.R16-283L30 3 / FB8
3 × 33.4 3 × 0.4 110 3 3 × 56 3.6 10.8 116 × 164 L3 1.9 E62.R16-333L30 3 / FB8 DATA CHARTS_DATENTABELLEN_E62 - 3ph
3 × 55.7 3 × 0.4 130 2.1 3 × 56 5 15 136 × 196 L3 2.8 E62.S19-563L30 2 / FB12
3 × 55.7 3 × 0.7 130 2 3 × 80 3.3 9.9 116 × 245 M3 2.8 E62.R24-563M30 3 / FB12
2430V U BB 1890V 50Hz AC / 2s U BG 4800V 50Hz AC / 2s
U N 1130V AC U rms 800V U S
3 × 24.9 3 × 0.55 140 2.9 3 × 56 2.2 6.6 100 × 196 L3 1.6 E62.Q19-253L30 3 / FB12
3 × 33.4 3 × 0.55 130 2.5 3 × 56 1.9 5.7 95 × 245 L3 1.9 E62.P24-333L30 3 / FB12
3 × 41.5 3 × 0.6 140 2 3 × 56 2 6 100 × 280 L3 2.4 E62.Q28-423L30 3 / FB10
3 × 49 3 × 0.5 130 2 3 × 56 2.9 8.7 116 × 245 L3 2.8 E62.R24-493L30 3 / FB12
Other values and dimensions available on request. 7
Andere Werte und Abmessungen auf Anfrage erhältlich.
