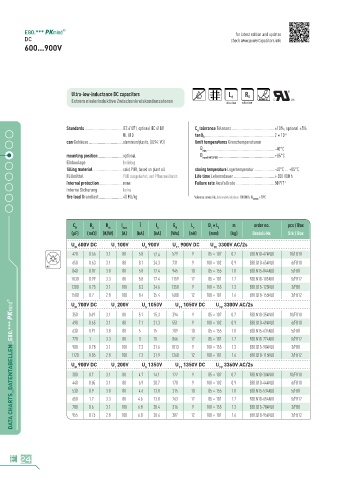

Page 24 - ELECTRONICON_DC-Kondensatoren
P. 24
E80.*** PKmind ® for latest edition and updates
DC check www.powercapacitors.info
600…900V
Ultra-low-inductance DC capacitors CQC
Extrem niederinduktive Zwischenkreiskondensatoren ultra low ultra low
Standards .....................................IEC 61071, optional IEC 61881 C tolerance Toleranz ..........................................±10%; optional ±5%
N
UL 810 tanδ 0 ....................................................................2 × 10 -4
can Gehäuse.................................aluminium/plastic, (UL94: VO) limit temperatures Grenztemperaturen
Ѳ ..................................................................-40°C
min
mounting position........................optional Ѳ max (HOTSPOT) .......................................................+85°C
Einbaulage beliebig
filling material.............................solid PUR, based on plant oil storing temperature Lagertemperatur....................-40°C ... +85°C
Füllmittel PUR ausgehärtet, auf Pflanzenölbasis Life time Lebensdauer ........................................> 200 000 h
internal protection.......................none Failure rate Ausfallrate......................................50 FIT 1
interne Sicherung keine
fire load Brandlast.......................40 MJ/kg 1 reference service life_Referenzbetriebsdauer 100 000 h, Ѳ HOTSPOT ≤ 70°C
C N R S R th I max Î I S E N L e D × L 1 m order no. pcs / Box
1
(µF) (m) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) (kg) Bestell-Nr. Stk / Box
U 600V DC U 100V U 900V U 900V DC U 3300V AC/2s
TC
TT
N
r
S
470 0.66 3.1 80 5.8 17.4 529 9 85 × 102 0.7 E80.N10-474NL0 10/FB10
650 0.63 3.1 80 8.1 24.3 731 9 100 × 102 0.9 E80.Q10-654NL0 6/FB10
NL0
840 0.87 3.8 80 5.8 17.4 945 10 85 × 155 1.0 E80.N15-844NL0 5/FB8
1030 0.99 3.3 80 5.8 17.4 1159 12 85 × 181 1.2 E80.N18-105NL0 5/FB12
1200 0.75 3.1 100 8.2 24.6 1350 9 100 × 155 1.3 E80.Q15-125NL0 3/FB8
1500 0.7 2.8 100 8.4 25.4 1688 12 100 × 181 1.6 E80.Q18-155NL0 3/FB12
DATA CHARTS_DATENTABELLEN_E80.*** PKmind ®
U 700V DC U 200V U 1050V U 1050V DC U 3300V AC/2s
N
r
TT
S
TC
350 0.69 3.1 80 5.1 15.3 394 9 85 × 102 0.7 E80.N10-354NL0 10/FB10
490 0.65 3.1 80 7.1 21.3 551 9 100 × 102 0.9 E80.Q10-494NL0 6/FB10
630 0.91 3.8 80 5 15 709 10 85 × 155 1.0 E80.N15-634NL0 5/FB8
770 1 3.3 80 5 15 866 12 85 × 181 1.2 E80.N18-774NL0 5/FB12
900 0.78 3.1 100 7.2 21.6 1013 9 100 × 155 1.3 E80.Q15-904NL0 3/FB8
1120 0.85 2.8 100 7.3 21.9 1260 12 100 × 181 1.6 E80.Q18-115NL0 3/FB12
U 900V DC U 200V U 1350V U 1350V DC U 3360V AC/2s
TT
S
TC
r
N
300 0.7 3.1 80 4.7 14.1 122 9 85 × 102 0.7 E80.N10-304NL0 10/FB10
440 0.65 3.1 80 6.9 20.7 178 9 100 × 102 0.9 E80.Q10-444NL0 6/FB10
530 0.9 3.8 80 4.6 13.8 215 10 85 × 155 1.0 E80.N15-534NL0 5/FB8
650 1.2 3.3 80 4.6 13.8 263 12 85 × 181 1.2 E80.N18-654NL0 5/FB12
780 0.6 3.1 100 6.8 20.4 316 9 100 × 155 1.3 E80.Q15-784NL0 3/FB8
955 0.75 2.8 100 6.8 20.4 387 12 100 × 181 1.6 E80.Q18-954NL0 3/FB12
24
