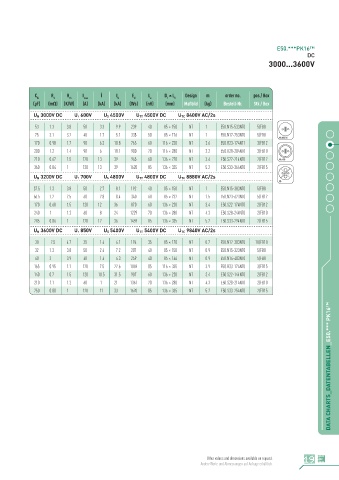

Page 19 - ELECTRONICON_DC-Kondensatoren
P. 19
E50.***PK16™
DC
3000...3600V
C N R S R th I max Î I S E N L e D × L 1 Design m order no. pcs / Box
1
(µF) (m) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
600V U S 4500V U TT 4500V DC U TC 8400V AC/2s
U N 3000V DC U r
53 1.3 3.8 50 3.3 9.9 239 40 85 × 150 NT 1 E50.N15-533NT0 5/FB8
75 3.1 3.2 40 1.7 5.1 338 50 85 × 176 NT 1 E50.N17-753NT0 5/FB8
NT ø85/116
170 0.98 1.7 90 6.3 18.8 765 60 116 × 230 NT 2.6 E50.R23-174NT1 3/FB12
200 1.2 1.4 90 6 18.1 900 70 116 × 280 NT 3.2 E50.R28-204NT0 3/FB10
210 0.67 1.5 120 13 39 945 60 136 × 220 NT 3.4 E50.S22-214NT0 2/FB12 NT ø136
360 0.84 1 120 13 39 1620 85 136 × 335 NT 5.2 E50.S33-364NT0 2/FB15
700V U S 4800V U TT 4800V DC U TC 8880V AC/2s
U N 3200V DC U r
N5
37.5 1.3 3.8 50 2.7 8.1 192 40 85 × 150 NT 1 E50.N15-383NT0 5/FB8
66.5 1.7 2.5 60 2.8 8.4 340 60 85 × 232 NT 1.5 E50.N23-673NT0 5/FB12
170 0.68 1.5 120 12 36 870 60 136 × 220 NT 3.4 E50.S22-174NT0 2/FB12
240 1 1.2 60 8 24 1229 70 136 × 280 NT 4.3 E50.S28-244NT0 2/FB10
285 0.86 1 120 12 36 1459 85 136 × 335 NT 5.2 E50.S33-294NT0 2/FB15
850V U S 5400V U TT 5400V DC U TC 9840V AC/2s
U N 3600V DC U r
30 2.5 4.7 35 1.4 4.1 194 35 85 × 120 NT 0.7 E50.N12-303NT0 10/FB10
32 1.3 3.8 50 2.4 7.2 207 40 85 × 150 NT 0.9 E50.N15-323NT0 5/FB8
40 3 3.9 40 1.4 4.3 259 40 85 × 146 NT 0.9 E50.N14-403NT0 5/FB8
165 0.95 1.1 120 7.5 22.6 1069 85 116 × 335 NT 3.9 E50.R33-174NT0 3/FB15
140 0.7 1.5 120 10.5 31.5 907 60 136 × 220 NT 3.4 E50.S22-144NT0 2/FB12
210 1.1 1.2 60 7 21 1361 70 136 × 280 NT 4.3 E50.S28-214NT0 2/FB10
250 0.88 1 120 11 33 1620 85 136 × 335 NT 5.2 E50.S33-254NT0 2/FB15 DATA CHARTS_DATENTABELLEN_E50.*** PK16™
Other values and dimensions available on request. 19
Andere Werte und Abmessungen auf Anfrage erhältlich.
