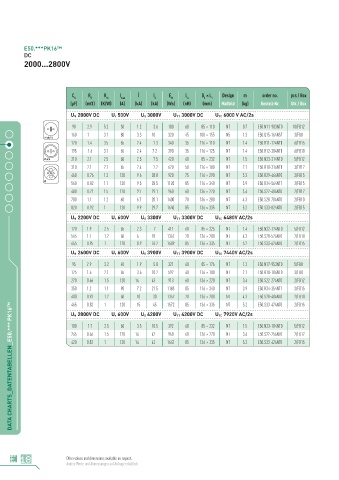

Page 18 - ELECTRONICON_DC-Kondensatoren
P. 18
E50.***PK16™
DC
2000...2800V
C R R I Î I E L D × L Design m order no. pcs / Box
N S th max S N e 1 1
(µF) (m) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
500V U S 3000V U TT 3000V DC U TC 6000 V AC/2s
U N 2000V DC U r
90 2.9 5.2 30 1.2 3.6 180 60 85 × 110 NT 0.7 E50.N11-903NT0 10/FB12
160 1 3.1 80 3.3 10 320 45 100 × 155 N5 1.3 E50.Q15-164N57 3/FB8
NT ø85/116
170 1.4 3.5 65 2.4 7.3 340 35 116 × 110 NT 1.4 E50.R11-174NT0 6/FB15
195 1.6 3.1 65 2.4 7.2 390 35 116 × 125 NT 1.4 E50.R12-204NT0 6/FB10
NT ø136 210 2.1 2.5 60 2.5 7.5 420 60 85 × 232 NT 1.5 E50.N23-214NT0 5/FB12
310 2.1 2.1 65 2.4 7.2 620 50 116 × 180 NT 2.1 E50.R18-314NT0 3/FB12
460 0.76 1.3 120 9.6 28.8 920 75 116 × 290 NT 3.3 E50.R29-464NT0 3/FB15
N5
560 0.82 1.1 120 9.5 28.5 1120 85 116 × 340 NT 3.9 E50.R34-564NT1 3/FB15
480 0.71 1.5 120 9.7 29.1 960 60 136 × 220 NT 3.4 E50.S22-484NT0 2/FB12
700 1.1 1.2 60 6.7 20.1 1400 70 136 × 280 NT 4.3 E50.S28-704NT0 2/FB10
820 0.92 1 120 9.9 29.7 1640 85 136 × 335 NT 5.2 E50.S33-824NT0 2/FB15
600V U S 3300V U TT 3300V DC U TC 6480V AC/2s
U N 2200V DC U r
170 1.9 2.5 65 2.3 7 411 60 85 × 225 NT 1.4 E50.N22-174NT0 5/FB12
565 1.1 1.2 60 6 18 1367 70 136 × 280 NT 4.3 E50.S28-574NT0 2/FB10
665 0.95 1 120 8.9 26.7 1609 85 136 × 335 NT 5.2 E50.S33-674NT0 2/FB15
600V U S 3900V U TT 3900V DC U TC 7440V AC/2s
U N 2600V DC U r
95 2.9 3.2 40 1.9 5.8 321 60 85 × 176 NT 1.2 E50.N17-953NT0 5/FB8
175 1.6 2.1 65 3.6 10.7 592 40 116 × 180 NT 2.1 E50.R18-184NT0 3/FB8
270 0.66 1.5 120 14 43 913 60 136 × 220 NT 3.4 E50.S22-274NT0 2/FB12
350 1.2 1.1 90 7.2 21.5 1183 85 116 × 340 NT 3.9 E50.R34-354NT1 3/FB15
400 0.93 1.2 60 10 30 1352 70 136 × 280 NT 4.3 E50.S28-404NT0 2/FB10
465 0.82 1 120 15 45 1572 85 136 × 335 NT 5.2 E50.S33-474NT0 2/FB15
DATA CHARTS_DATENTABELLEN_E50.*** PK16™
600V U S 4200V U TT 4200V DC U TC 7920V AC/2s
U N 2800V DC U r
100 1.7 2.5 60 3.5 10.5 392 60 85 × 232 NT 1.5 E50.N23-104NT0 5/FB12
245 0.66 1.5 120 14 42 960 60 136 × 220 NT 3.4 E50.S22-254NT0 2/FB12
420 0.82 1 120 14 42 1647 85 136 × 335 NT 5.2 E50.S33-424NT0 2/FB15
18 Other values and dimensions available on request.
Andere Werte und Abmessungen auf Anfrage erhältlich.
