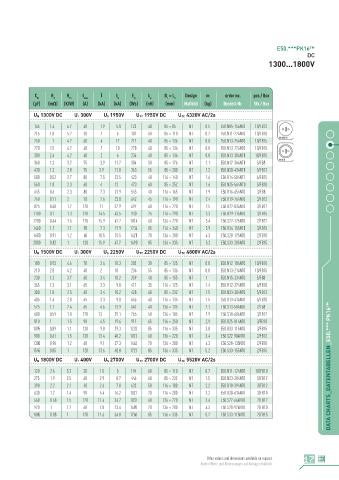

Page 17 - ELECTRONICON_DC-Kondensatoren

E50.***PK16™
DC
1300...1800V

C N R S R th I max Î I S E N L e D × L 1 Design m order no. pcs / Box
1
(µF) (mƒ) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
300V U S 1950V U TT 1950V DC U TC 4320V AC/2s
U N 1300V DC U r
145 1.4 6.7 40 1.9 5.8 123 40 85 × 85 NT 0.5 E50.N85-154NT0 10/FB12
215 1.8 5.2 30 2 6 182 60 85 × 110 NT 0.7 E50.N11-224NT0 10/FB10
NT ø85/116
250 1 4.2 60 4 12 211 40 85 × 136 NT 0.8 E50.N13-254NT0 10/FB15
270 2.5 4.2 40 2 10 228 40 85 × 136 NT 0.8 E50.N13-274NT0 10/FB15
300 2.4 4.2 40 2 6 234 40 85 × 136 NT 0.8 E50.N13-304NT0 10/FB15
360 1.2 3.2 75 3.9 11.7 304 50 85 × 176 NT 1.1 E50.N17-364NT0 5/FB8 NT ø136
430 1.3 2.8 75 3.9 11.8 363 55 85 × 200 NT 1.2 E50.N20-434NT0 5/FB12
500 0.52 2.7 80 7.5 22.5 423 40 116 × 140 NT 1.6 E50.R14-504NT1 6/FB15
560 1.8 2.3 60 4 12 473 60 85 × 252 NT 1.6 E50.N25-564NT0 5/FB10
645 0.6 2.3 80 7.3 21.9 545 40 116 × 165 NT 1.9 E50.R16-654NT0 3/FB8
760 0.71 2 70 7.6 22.8 642 45 116 × 190 NT 2.4 E50.R19-764NT0 3/FB12
825 0.68 1.7 120 11 32.9 697 60 116 × 220 NT 2.5 E50.R22-834NT0 3/FB12
1100 0.7 1.3 120 14.5 43.5 930 75 116 × 290 NT 3.3 E50.R29-115NT0 3/FB15
1200 0.64 1.5 120 15.9 47.7 1014 60 136 × 220 NT 3.4 E50.S22-125NT0 2/FB12
1460 1.2 1.1 90 7.3 21.9 1234 85 116 × 340 NT 3.9 E50.R34-155NT0 3/FB15
1680 0.91 1.2 60 10.5 31.5 1420 70 136 × 280 NT 4.3 E50.S28-175NT0 2/FB10
2000 0.82 1 120 15.9 47.7 1690 85 136 × 335 NT 5.2 E50.S33-205NT0 2/FB15
2250V U TT 2250V DC U TC 4800V AC/2s
U N 1500V DC U r 300V U S
180 0.93 4.6 70 3.4 10.3 203 30 85 × 125 NT 0.8 E50.N12-184NT0 10/FB10
210 2.8 4.2 40 2 10 236 55 85 × 136 NT 0.8 E50.N13-214NT0 10/FB15
230 1.3 3.7 60 3.4 10.2 259 40 85 × 155 NT 1 E50.N15-234NT0 5/FB8
365 1.3 3.1 65 3.3 9.8 411 35 116 × 125 NT 1.4 E50.R12-374NT0 6/FB10
380 1.8 2.5 60 3.4 10.2 428 60 85 × 232 NT 1.5 E50.N23-384NT0 5/FB12
405 1.4 2.8 65 3.3 9.8 456 40 116 × 135 NT 1.5 E50.R13-414NT0 6/FB10
575 1.1 2.4 65 4.6 13.9 647 40 136 × 135 NT 2.1 E50.S13-584NT0 2/FB8
680 0.59 1.8 120 13 39.1 765 50 136 × 185 NT 2.9 E50.S18-684NT0 3/FB12
810 1 1.5 90 6.5 19.6 911 65 116 × 250 NT 2.9 E50.R25-814NT0 3/FB10
1095 0.89 1.1 120 9.8 29.3 1232 85 116 × 335 NT 3.8 E50.R33-115NT0 3/FB15
900 0.61 1.5 120 13.4 40.2 1012 60 136 × 220 NT 3.4 E50.S22-904NT0 2/FB12
1300 0.96 1.2 60 9.1 27.3 1463 70 136 × 280 NT 4.3 E50.S28-135NT0 2/FB10
1545 0.85 1 120 13.6 40.8 1721 85 136 × 335 NT 5.2 E50.S33-155NT0 2/FB15
400V U S 2700V U TT 2700V DC U TC 5520V AC/2s
U N 1800V DC U r
120 2.6 5.2 30 1.5 5 194 60 85 × 110 NT 0.7 E50.N11-124NT0 10/FB10 DATA CHARTS_DATENTABELLEN_E50.*** PK16™
275 1.9 2.5 60 2.9 8.7 446 60 85 × 232 NT 1.5 E50.N23-284NT0 5/FB12
390 2.2 2.1 40 2.6 7.8 632 50 116 × 180 NT 2.2 E50.R18-394NT0 3/FB12
630 1.2 1.4 90 5.4 16.2 1021 70 116 × 280 NT 3.2 E50.R28-634NT0 3/FB10
640 0.68 1.5 120 11.4 34.2 1037 60 136 × 220 NT 3.4 E50.S22-644NT0 2/FB12
920 1 1.2 60 7.8 23.4 1490 70 136 × 280 NT 4.3 E50.S28-924NT0 2/FB10
1085 0.88 1 120 11.6 34.8 1760 85 136 × 335 NT 5.2 E50.S33-115NT0 2/FB15

Other values and dimensions available on request. 17
Andere Werte und Abmessungen auf Anfrage erhältlich.
