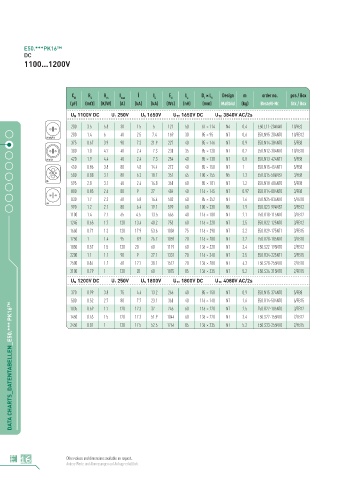

Page 16 - ELECTRONICON_DC-Kondensatoren
P. 16
E50.***PK16™
DC
1100...1200V
C R R I Î I E L D × L Design m order no. pcs / Box
N S th max S N e 1 1
(µF) (m) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
250V U S 1650V U TT 1650V DC U TC 3840V AC/2s
U N 1100V DC U r
200 3.5 5.8 30 1.5 5 121 50 67 × 114 N4 0.4 E50.L11-204N40 10/FB2
280 1.4 6 40 2.5 7.4 169 30 85 × 95 NT 0.6 E50.N95-284NT0 10/FB12
NT ø85/116
375 0.67 3.9 90 7.3 21.9 227 40 85 × 146 NT 0.9 E50.N14-384NT0 5/FB8
380 1.8 4.7 40 2.4 7.3 230 35 85 × 120 NT 0.7 E50.N12-384NT0 10/FB10
420 1.9 4.4 40 2.4 7.3 254 40 85 × 130 NT 0.8 E50.N13-424NT1 5/FB8
NT ø136
450 0.86 3.8 80 4.8 14.4 272 40 85 × 150 NT 1 E50.N15-454NT1 5/FB8
580 0.88 3.1 80 6.2 18.7 351 45 100 × 155 N5 1.3 E50.Q15-584N57 3/FB8
N5
595 2.8 3.1 40 2.4 14.8 360 60 85 × 181 NT 1.2 E50.N18-604NT0 5/FB8
800 0.85 2.6 80 9 27 484 40 116 × 145 NT 0.97 E50.R14-804NT0 3/FB8
830 1.7 2.3 60 4.8 14.4 502 60 85 × 252 NT 1.6 E50.N25-834NT0 5/FB10
N4
990 1.2 2.1 80 6.4 19.1 599 60 100 × 230 N5 1.9 E50.Q23-994N57 3/FB12
1100 1.4 2.1 65 4.5 13.5 666 40 116 × 180 NT 2.1 E50.R18-115NT0 3/FB12
1245 0.65 1.7 120 13.4 40.2 753 60 116 × 220 NT 2.5 E50.R22-125NT0 3/FB12
1660 0.71 1.3 120 17.9 53.6 1004 75 116 × 290 NT 3.2 E50.R29-175NT1 3/FB15
1750 1 1.4 95 8.9 26.7 1059 70 116 × 280 NT 3.2 E50.R28-185NT0 3/FB10
1850 0.57 1.5 120 20 60 1119 60 136 × 220 NT 3.4 E50.S22-195NT0 2/FB12
2200 1.1 1.1 90 9 27.1 1331 70 116 × 340 NT 3.5 E50.R34-225NT1 3/FB15
2500 0.86 1.2 60 12.7 38.1 1512 70 136 × 280 NT 4.3 E50.S28-255NT0 2/FB10
3100 0.79 1 120 20 60 1875 85 136 × 335 NT 5.2 E50.S34-315NT0 2/FB15
250V U S 1800V U TT 1800V DC U TC 4080V AC/2s
U N 1200V DC U r
370 0.99 3.8 75 4.4 13.2 266 40 85 × 150 NT 0.9 E50.N15-374NT0 5/FB8
500 0.52 2.7 80 7.7 23.1 360 40 116 × 140 NT 1.6 E50.R14-504NT0 6/FB15
DATA CHARTS_DATENTABELLEN_E50.*** PK16™
1035 0.69 1.7 120 12.3 37 745 60 116 × 220 NT 2.5 E50.R22-105NT0 3/FB12
1450 0.63 1.5 120 17.3 51.9 1044 60 136 × 220 NT 3.4 E50.S22-155NT0 2/FB12
2450 0.81 1 120 17.5 52.5 1764 85 136 × 335 NT 5.2 E50.S33-255NT0 2/FB15
16 Other values and dimensions available on request.
Andere Werte und Abmessungen auf Anfrage erhältlich.
