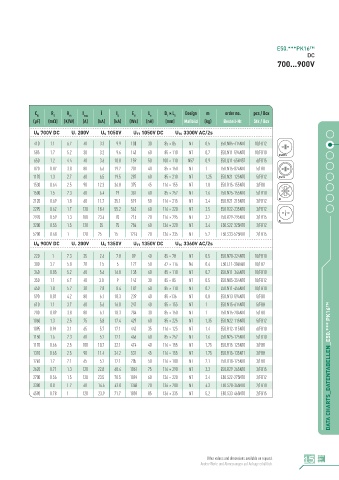

Page 15 - ELECTRONICON_DC-Kondensatoren

E50.***PK16™
DC
700...900V

C N R S R th I max Î I S E N L e D × L 1 Design m order no. pcs / Box
1
(µF) (mƒ) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
200V U S 1050V U TT 1050V DC U TC 3300V AC/2s
U N 700V DC U r
410 1.1 6.7 40 3.3 9.9 100 30 85 × 85 NT 0.5 E50.N85-414NT0 10/FB12
585 1.7 5.2 30 3.2 9.6 143 60 85 × 110 NT 0.7 E50.N11-594NT0 10/FB10
NT ø85/116
650 1.2 4.4 40 3.6 10.8 159 50 100 × 110 N57 0.9 E50.Q11-654N57 6/FB15
820 0.87 3.8 80 6.6 19.7 201 40 85 × 150 NT 1 E50.N15-824NT0 5/FB8
1170 1.3 2.7 60 6.5 19.5 287 60 85 × 210 NT 1.25 E50.N21-125NT0 5/FB12 NT ø136
1530 0.64 2.5 90 12.3 36.8 375 45 116 × 155 NT 1.8 E50.R15-155NT0 3/FB8
1500 1.5 2.3 60 6.4 19 367 60 85 × 252 NT 1.6 E50.N25-155NT0 5/FB10
2120 0.69 1.8 60 11.7 35.1 519 50 116 × 215 NT 2.4 E50.R21-215NT0 3/FB12 N5
2295 0.62 1.7 120 18.4 55.2 562 60 116 × 220 NT 2.5 E50.R22-235NT0 3/FB12
2920 0.59 1.3 100 23.4 70 715 70 116 × 295 NT 3.2 E50.R29-295NT0 3/FB15
N4
3200 0.55 1.5 120 25 75 784 60 136 × 220 NT 3.4 E50.S22-325NT0 2/FB12
5200 0.68 1 120 25 75 1274 70 136 × 335 NT 5.2 E50.S33-525NT0 2/FB15
200V U S 1350V U TT 1350V DC U TC 3360V AC/2s
U N 900V DC U r
220 1 7.3 35 2.6 7.8 89 40 85 × 78 NT 0.5 E50.N78-224NT0 10/FB10
300 3.7 5.8 20 1.5 5 122 50 67 × 114 N4 0.4 E50.L11-304N40 10/FB2
340 0.85 5.2 60 5.6 16.8 138 60 85 × 110 NT 0.7 E50.N11-344NT0 10/FB10
350 1.1 6.7 40 3.0 9 142 30 85 × 85 NT 0.5 E50.N85-354NT0 10/FB12
450 1.8 5.2 30 2.8 8.4 182 60 85 × 110 NT 0.7 E50.N11-454NT0 10/FB10
590 0.81 4.2 80 6.1 18.3 239 40 85 ×136 NT 0.8 E50.N13-594NT0 5/FB8
610 1.1 3.7 60 5.6 16.8 247 40 85 × 155 NT 1 E50.N15-614NT0 5/FB8
700 0.89 3.8 80 6.1 18.3 284 30 85 × 150 NT 1 E50.N15-704NT0 5/FB8
1060 1.3 2.5 75 5.8 17.4 429 60 85 × 225 NT 1.35 E50.N22-115NT0 5/FB12
1095 0.94 3.1 65 5.7 17.1 443 35 116 × 125 NT 1.4 E50.R12-115NT0 6/FB10
1150 1.6 2.3 60 5.7 17.1 466 60 85 × 252 NT 1.6 E50.N25-125NT0 5/FB10
1170 0.66 2.5 100 10.7 32.1 474 40 116 × 155 NT 1.75 E50.R15-125NT0 3/FB8
1310 0.65 2.5 90 11.4 34.2 531 45 116 × 155 NT 1.75 E50.R15-135NT1 3/FB8
1740 1.2 2.1 65 5.7 17.1 705 50 116 × 180 NT 2.1 E50.R18-175NT0 3/FB8
2620 0.71 1.3 120 22.8 68.4 1061 75 116 × 290 NT 3.3 E50.R29-265NT0 3/FB15 DATA CHARTS_DATENTABELLEN_E50.*** PK16™
2700 0.56 1.5 120 23.5 70.5 1094 60 136 × 220 NT 3.4 E50.S22-275NT0 2/FB12
3380 0.8 1.2 60 14.6 43.8 1368 70 136 × 280 NT 4.3 E50.S28-345NT0 2/FB10
4590 0.78 1 120 23.9 71.7 1859 85 136 × 335 NT 5.2 E50.S33-465NT0 2/FB15

Other values and dimensions available on request. 15
Andere Werte und Abmessungen auf Anfrage erhältlich.
