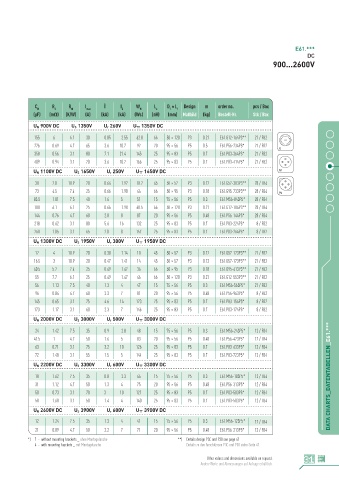

Page 31 - ELECTRONICON_DC-Kondensatoren

E61.***
DC
900...2600V

C N R S R th I max Î I S W N L e D × L 1 Design m order no. pcs / Box
1
(µF) (mƒ) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box

1350V U r 260V U TT 1350V DC
U N 900V DC U S
155 6 6.1 30 0.85 2.55 62.8 66 50 × 120 P3 0.21 E61.G12-164P3** 21 / FB2
226 0.69 4.7 65 3.6 10.7 92 20 95 × 56 P5 0.5 E61.P56-234P5* 21 / FB2
P3
358 0.56 3.1 80 7.1 21.4 145 25 95 × 83 P5 0.7 E61.P83-364P5* 21 / FB2
409 0.94 3.1 70 3.6 10.7 166 25 95 × 83 P5 0.7 E61.P83-414P5* 21 / FB2
1650V U r 250V U TT 1650V DC P57
U N 1100V DC U S
30 2.8 10.9 20 0.64 1.92 18.2 45 50 × 57 P3 0.12 E61.G57-303P3** 28 / FB4
73 4.5 7.4 25 0.66 1.98 44 66 50 × 95 P3 0.18 E61.G95-733P3** 28 / FB4 P54
83.5 1.01 7.5 40 1.6 5 51 15 75 × 56 P5 0.3 E61.M56-843P5* 28 / FB4
100 6.1 6.1 25 0.66 1.98 60.5 66 50 × 120 P3 0.21 E61.G12-104P3** 28 / FB4
144 0.76 4.7 60 2.8 8 87 20 95 × 56 P5 0.48 E61.P56-144P5* 28 / FB4
218 0.62 3.1 80 5.6 16 132 25 95 × 83 P5 0.7 E61.P83-224P5* 8 / FB2
260 1.05 3.1 65 2.8 8 157 25 95 × 83 P5 0.7 E61.P83-264P5* 8 / FB2
1950V U r 300V U TT 1950V DC
U N 1300V DC U S
12 4 10.9 20 0.38 1.14 10 45 50 × 57 P3 0.12 E61.G57-123P3** 21 / FB2
16.5 3 10.9 20 0.47 1.41 14 45 50 × 57 P3 0.12 E61.G57-173P3** 21 / FB2
40.5 5.7 7.4 25 0.49 1.47 34 66 50 × 95 P3 0.18 E61.G95-413P3** 21 / FB2
55 7.7 6.1 25 0.49 1.47 46 66 50 × 120 P3 0.21 E61.G12-553P3** 21 / FB2
56 1.13 7.5 40 1.3 4 47 15 75 × 56 P5 0.3 E61.M56-563P5* 21 / FB2
96 0.84 4.7 60 2.3 7 81 20 95 × 56 P5 0.48 E61.P56-963P5* 8 / FB2
145 0.65 3.1 75 4.6 14 123 25 95 × 83 P5 0.7 E61.P83-154P5* 8 / FB2
173 1.17 3.1 60 2.3 7 146 25 95 × 83 P5 0.7 E61.P83-174P5* 8 / FB2
3000V U r 500V U TT 3000V DC
U N 2000V DC U S
24 1.42 7.5 35 0.9 2.8 48 15 75 × 56 P5 0.3 E61.M56-243P5* 12 / FB4
41.5 1 4.7 50 1.6 5 83 20 95 × 56 P5 0.48 E61.P56-423P5* 12 / FB4
63 0.71 3.1 75 3.2 10 126 25 95 × 83 P5 0.7 E61.P83-633P5* 12 / FB4
72 1.48 3.1 55 1.5 5 144 25 95 × 83 P5 0.7 E61.P83-723P5* 12 / FB4
3300V U r 600V U TT 3300V DC
U N 2200V DC U S
18 1.62 7.5 35 0.8 2.3 44 15 75 × 56 P5 0.3 E61.M56-183P5* 12 / FB4 DATA CHARTS_DATENTABELLEN_E61.***
31 1.12 4.7 50 1.3 4 75 20 95 × 56 P5 0.48 E61.P56-313P5* 12 / FB4
50 0.73 3.1 70 3 10 121 25 95 × 83 P5 0.7 E61.P83-503P5* 12 / FB4
58 1.68 3.1 50 1.4 4 140 25 95 × 83 P5 0.7 E61.P83-583P5* 12 / FB4
3900V U r 600V U TT 3900V DC
U N 2600V DC U S
12 1.24 7.5 35 1.3 4 41 15 75 × 56 P5 0.3 E61.M56-123P5* 12 / FB4
21 0.89 4.7 50 2.2 7 71 20 95 × 56 P5 0.48 E61.P56-213P5* 12 / FB4
0.7
E61.P83-403P57
P57
50
3.1
1.23
2.2
*) 40 7 - without mounting brackets _ ohne Montagelasche 7 135 25 95 × 83 **) Details design P3C and P30 see page 42
4 - with mounting brackets _ mit Montagelasche Details zu den Anschlüssen P3C und P30 siehe Seite 42
Other values and dimensions available on request. 31
Andere Werte und Abmessungen auf Anfrage erhältlich.
