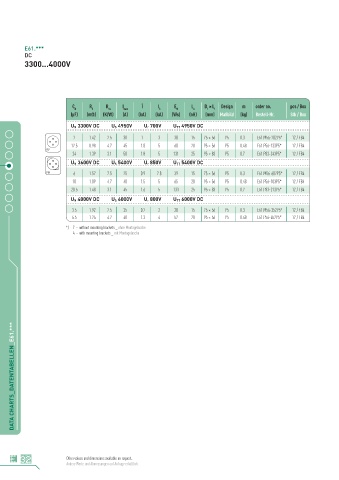

P. 32
E61.***
DC
3300...4000V
C N R S R th I max Î I S E N L e D × L 1 Design m order no. pcs / Box
1
(µF) (m) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
4950V U r 700V U TT 4950V DC
U N 3300V DC U S
7 1.42 7.5 30 1 3 38 15 75 × 56 P5 0.3 E61.M56-702P5* 12 / FB4
12.5 0.98 4.7 45 1.8 5 68 20 95 × 56 P5 0.48 E61.P56-133P5* 12 / FB4
P57
24 1.39 3.1 50 1.8 5 131 25 95 × 83 P5 0.7 E61.P83-243P5* 12 / FB4
5400V U r 850V U TT 5400V DC
U N 3600V DC U S
P54 6 1.52 7.5 25 0.9 2.8 39 15 75 × 56 P5 0.3 E61.M56-602P5* 12 / FB4
10 1.09 4.7 40 1.5 5 65 20 95 × 56 P5 0.48 E61.P56-103P5* 12 / FB4
20.5 1.48 3.1 45 1.6 5 133 25 95 × 83 P5 0.7 E61.P83-213P5* 12 / FB4
6000V U r 800V U TT 6000V DC
U N 4000V DC U S
3.5 1.92 7.5 25 0.7 2 28 15 75 × 56 P5 0.3 E61.M56-352P5* 12 / FB4
6.5 1.24 4.7 40 1.3 4 52 20 95 × 56 P5 0.48 E61.P56-652P5* 12 / FB4
*) 7 - without mounting brackets _ ohne Montagelasche
4 - with mounting brackets _ mit Montagelasche
DATA CHARTS_DATENTABELLEN_E61.***
32 Other values and dimensions available on request.
Andere Werte und Abmessungen auf Anfrage erhältlich.
