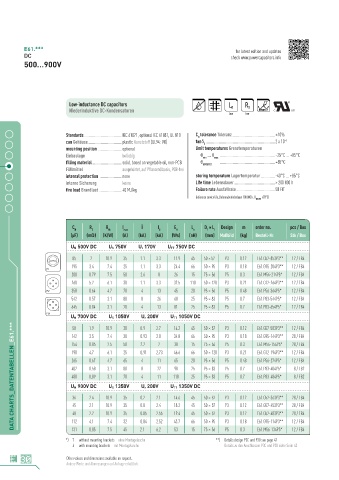

E61.*** for latest edition and updates
DC check www.powercapacitors.info
500...900V

Niederinduktive DC-Kondensatoren CQC
Low-inductance DC capacitors
low low

Standards .....................................IEC 61071, optional IEC 61881, UL 810 C tolerance Toleranz ..........................................±10%
N
can Gehäuse.................................plastic Kunststoff (UL94: VO) tanδ ....................................................................2 x 10 -4
0
mounting position........................optional limit temperatures Grenztemperaturen
Einbaulage beliebig Ѳ ... Ѳ max ......................................................-25°C ... +85°C
min
filling material.............................solid, based on vegetable oil, non-PCB Ѳ HOTSPOT ......................................................+85°C
Füllmittel ausgehärtet, auf Pflanzenölbasis, PCB-frei
internal protection ......................none storing temperature Lagertemperatur ..............-40°C ... +85°C
interne Sicherung keine Life time Lebensdauer ........................................> 200 000 h
fire load Brandlast.......................40 MJ/kg Failure rate Ausfallrate......................................50 FIT
(reference service life_Referenzbetriebsdauer 100 000 h, Ѳ HOTSPOT ≤70°C)

C N R S R th I max Î I S E N L e D × L 1 Design m order no. pcs / Box
1
(µF) (mƒ) (K/W) (A) (kA) (kA) (Ws) (nH) (mm) Maßbild (kg) Bestell-Nr. Stk / Box
750V U r 170V U TT 750V DC
U N 500V DC U S
85 2 10.9 35 1.1 3.3 11.9 45 50 × 57 P3 0.12 E61.G57-853P3** 12 / FB4
195 3.4 7.4 25 1.1 3.3 24.4 66 50 × 95 P3 0.18 E61.G95-204P3** 12 / FB4
P3
208 0.79 7.5 50 2.6 8 26 15 75 × 56 P5 0.3 E61.M56-214P5* 12 / FB4
260 5.2 6.1 30 1.1 3.3 32.5 110 50 × 120 P3 0.21 E61.G12-264P3** 12 / FB4
P57 358 0.64 4.7 70 4 13 45 20 95 × 56 P5 0.48 E61.P56-364P5* 12 / FB4
542 0.57 3.1 80 8 26 68 25 95 × 83 P5 0.7 E61.P83-544P5* 12 / FB4
645 0.84 3.1 70 4 13 81 25 95 × 83 P5 0.7 E61.P83-654P5* 12 / FB4
P54
U N 700V DC U S 1050V U r 200V U TT 1050V DC
DATA CHARTS_DATENTABELLEN_E61.***
58 1.9 10.9 30 0.9 2.7 14.2 45 50 × 57 P3 0.12 E61.G57-583P3** 12 / FB4
142 3.5 7.4 30 0.93 2.8 34.8 66 50 × 95 P3 0.18 E61.G95-144P3** 28 / FB4
154 0.85 7.5 50 2.2 7 38 15 75 × 56 P5 0.3 E61.M56-154P5* 28 / FB4
190 4.7 6.1 25 0.91 2.73 46.6 66 50 × 120 P3 0.21 E61.G12-194P3** 12 / FB4
265 0.67 4.7 65 4 11 65 20 95 × 56 P5 0.48 E61.P56-274P5* 12 / FB4
402 0.58 3.1 80 8 22 98 25 95 × 83 P5 0.7 E61.P83-404P5* 8 / FB2
480 0.89 3.1 70 4 11 118 25 95 × 83 P5 0.7 E61.P83-484P5* 8 / FB2
1350V U r 200V U TT 1350V DC
U N 900V DC U S
36 2.4 10.9 35 0.7 2.1 14.6 45 50 × 57 P3 0.12 E61.G57-363P3** 28 / FB4
45 2.1 10.9 35 0.8 2.4 18.2 45 50 × 57 P3 0.12 E61.G57-453P3** 28 / FB4
48 2.2 10.9 35 0.85 2.55 19.4 45 50 × 57 P3 0.12 E61.G57-483P3** 28 / FB4
112 4.1 7.4 32 0.84 2.52 43.7 66 50 × 95 P3 0.18 E61.G95-114P3** 12 / FB4
131 0.85 7.5 45 2.1 6.2 53 15 75 × 56 P5 0.3 E61.M56-134P5* 12 / FB4

*) 7 - without mounting brackets _ ohne Montagelasche **) Details design P3C and P30 see page 42
4 - with mounting brackets _ mit Montagelasche Details zu den Anschlüssen P3C und P30 siehe Seite 42

30 Other values and dimensions available on request.
Andere Werte und Abmessungen auf Anfrage erhältlich.
