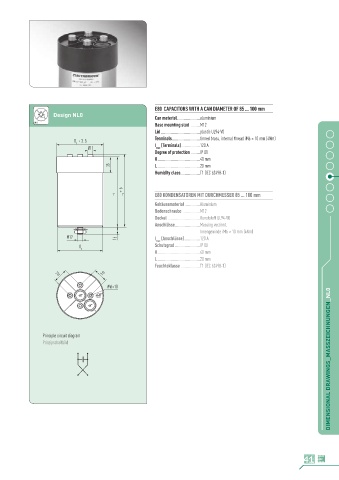

E80 CAPACITORS WITH A CAN DIAMETER OF 85 … 100 mm
Design NL0 Can material ......................aluminium
NL0 Base mounting stud .........M12
Lid ......................................plastic UL94-V0
D + 3. 5 Terminals ...........................tinned brass, internal thread iM6 × 10 mm (4Nm)
1 I (Terminals) ..................120 A
11 max
Degree of protection .........IP 00
K .........................................40 mm
35 L ..........................................20 mm
Humidity class...................T1 (IEC 62498-1)

L 1 + 6
L 1 E80 KONDENSATOREN MIT DURCHMESSER 85 … 100 mm
Gehäusematerial ..............Aluminium
Bodenschraube ................M12
Deckel ...............................Kunststoff UL94-V0
Anschlüsse ........................Messing verzinnt,
............................................Innengewinde iM6 × 10 mm (4Nm)
M12 16 I (Anschlüsse) ...............120 A
max
D 1 Schutzgrad ........................IP 00
K .........................................40 mm
L ..........................................20 mm
Feuchteklasse ..................T1 (IEC 62498-1)
32 32

iM6×10
R
R
R

Principle circuit diagram
Prinzipschaltbild DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_NL0
