Page 42 - ELECTRONICON_DC-Kondensatoren
P. 42
P57/P54
Design P54/P57
P57 P54
75 95
2
95
75 L 1 1+ 3.2 1+ 3.2
5 2 L L 1
5 L
L 1 1+ 3.2
5 L
1+ 3.2
L 1 5.5
5.5
P54 5 5.5 L P54 5.5
35
35 88
38
38 112
38
35 38 112
35 88
P57 P57

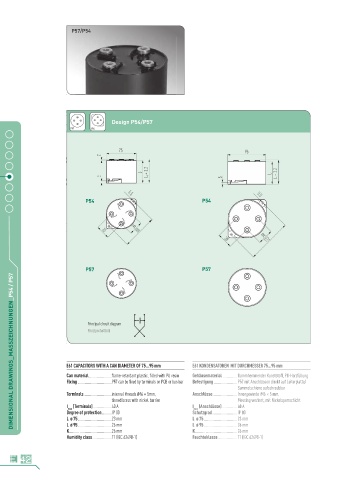

DIMENSIONAL DRAWINGS_MASSZEICHNUNGEN_P54 / P57
Principal circuit diagram
Prinzipschaltbild
E61 CAPACITORS WITH A CAN DIAMETER OF 75...95 mm E61 KONDENSATOREN MIT DURCHMESSER 75...95 mm
Can material ......................flame-retardant plastic, filled with PU resin Gehäusematerial ..............flammhemmender Kunststoff, PU-Harzfüllung
Fixing .................................P57 can be fixed by terminals on PCB or bus bar Befestigung .......................P57 mit Anschlüssen direkt auf Leiterplatte/
Sammelschiene aufschraubbar
Terminals ...........................internal threads iM6 × 5mm, Anschlüsse ........................Innengewinde iM6 × 5 mm,
tinned brass with nickel barrier Messing verzinnt, mit Nickelsperrschicht
I (Terminals) ..................40 A I (Anschlüsse) ...............40 A
max
max
Degree of protection .........IP 00 Schutzgrad .........................IP 00
L ø 75 .................................23 mm L ø 75 .................................23 mm
L ø 95 .................................26 mm L ø 95 .................................26 mm
K.......... ...............................26 mm K.......... ...............................26 mm
Humidity class...................T1 (IEC 62498-1) Feuchteklasse ...................T1 (IEC 62498-1)
42
